Remove/install lock cylinder on glove compartment lid - AR68.10-P-1250T

MODEL 211.0/2/6

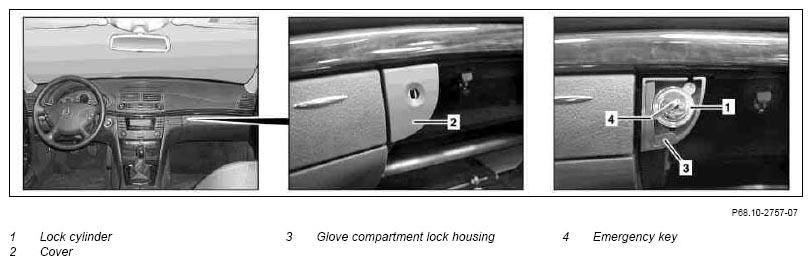

Fig 1: Identifying Glove Compartment Lock Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open glove compartment.
2	Unclip cover (2) toward rear from glove compartment lock housing (3)
3	Insert emergency key (4) into lock cylinder (1) and move to assembly position	Turn emergency key (4) approx. 45° clockwise
4	Pull lock cylinder (1) out of glove compartment lock housing (3) with emergency key (4).	Installation:  Lock cylinder (1) should catch audibly.
5	Install in the reverse order
