Remove/install load compartment floor - AR68.80-P-5800TA
MODEL 211.2 with CODE (943) Automatically extendable main loading floor Load compartment floor does not function

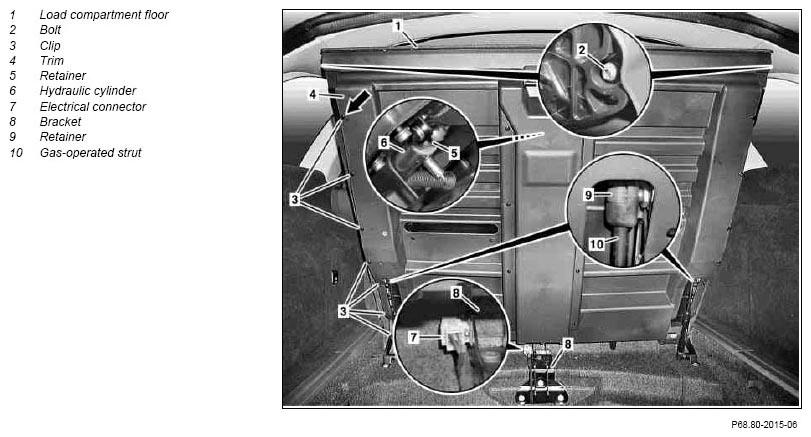

| Remove/install | |||
|---|---|---|---|
| 1 | Open load compartment floor (1) upwards | ||
| 2 | Unscrew bolts (1) from load compartment floor (2) on left and right | ||
| 3 | Remove clips (3) and lower trim (4) until retainer (5) on hydraulic cylinder (6) is accessible | ||
| 4 | Lift retainer (5) on hydraulic cylinder (6) with suitable screwdriver and remove hydraulic cylinder (6) from ball head | ||
| 5 | Install clip (3) (arrow) for fastening trim (4) | ||
| 6 | Disconnect battery ground cable | AR54.10-P-0003TA | |
| 7 | Remove electrical connector (7) from bracket (8) and disconnect | ||
| 8 | Secure load compartment floor (1) against falling with support | *230589046300 | |
| Injury hazard Gas-operated struts are under high pressure and can pinch and crush body parts during work | Only remove and install gas-operated struts in the relaxed position and when the components are secured properly. | AS00.00-Z-0012-01A | |
| 9 | Lift retainer (9) with suitable screwdriver and remove gas-operated strut (10) from load compartment floor (1) on left and right | ||
| 10 | Remove support and lower load compartment floor (1) | *230589046300 | |

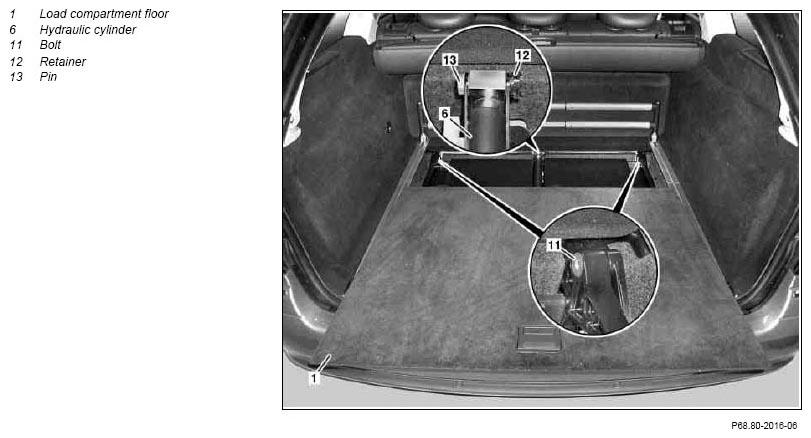

| 11 | Pull load compartment floor (1) toward rear until bolts (11) are accessible and unscrew bolts (11) | ||
| *BA68.80-P-1001-01A | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 12 | Remove retainer (12) from bolt (13) and remove bolt (13) | ||
| 13 | Slide load compartment floor (1) toward front and remove from load compartment | ||
| 14 | Install in the reverse order | ||
| 15 | Check load compartment floor for proper function (1) |
LOAD COMPARTMENT FLOOR
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA68.80-P-1001-01A | Bolt, load compartment floor to bracket | Nm | 15 |
