Remove/install load compartment floor - AR68.80-P-5800T

MODEL 211.2 up to 31.5.06 except CODE (943) Automatically extendable main loading floor

MODEL 211.2 as of 1.6.06 except CODE (943) Automatically extendable main loading floor Middle load compartment floor

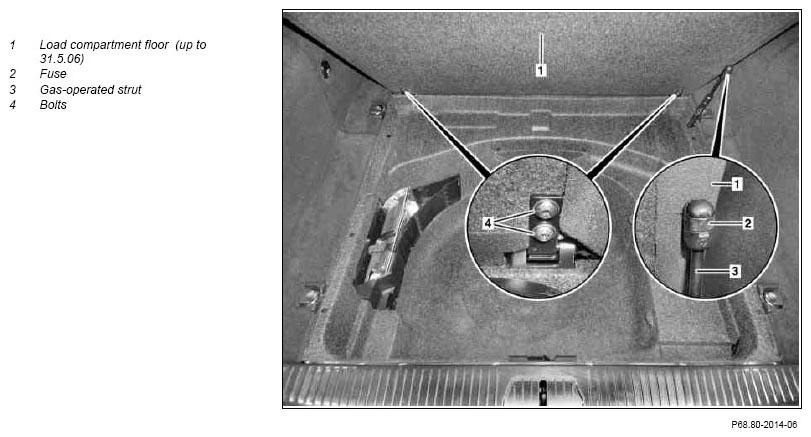

Shown on vehicle up to 31.5.06

Fig 1: Identifying Load Compartment Floor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

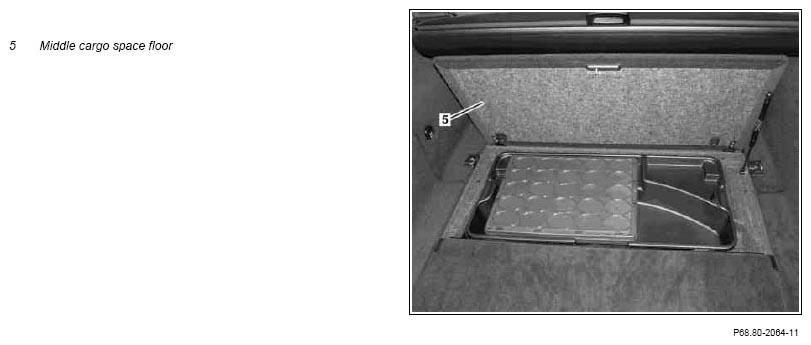

Vehicle as of 1.6.06

Fig 2: Identifying Load Compartment Floor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Unhook roller blind for load compartment cover
2	Fold load compartment floor (1) or middle load compartment floor (5) upward.
	Risk of injury  caused by body parts being pinched or crushed when working on gas-operated struts under tension	Only remove and install gas-operated struts when they are not under tension and when the components are properly secured.	AS00.00-Z-0012-01A
3	Lift retainer (2) with suitable screwdriver and remove gas-operated strut (3) from load compartment floor (1) or middle load compartment (5).	Do not remove retainer (2), otherwise tension on retainer (2) can be lost Installation:  Install gas-operated strut (3) with retainer (2) installed.
4	Remove bolts (4)
5	Remove load compartment floor (1) or center load compartment floor (5) from load compartment
6	Install in the reverse order
