Remove/install center console - AR68.20-P-2000T

MODEL 211 with CODE (494) USA version as of Model Year 2006

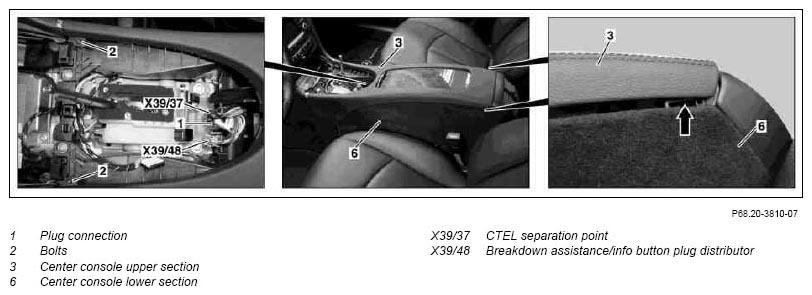

Fig 1: Identifying Center Console Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

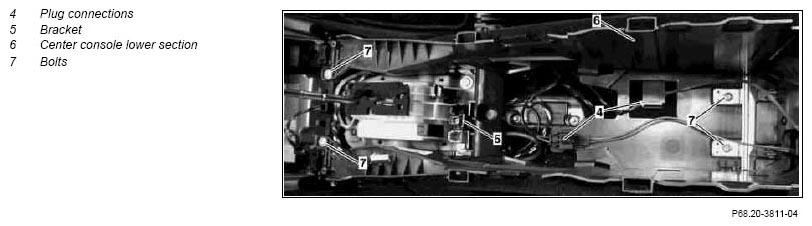

Fig 2: Identifying Center Console Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cover on center console		AR68.20-P-2350T
2	Remove ashtray from front center console	Installation:  Check ashtray housing mechanism for proper function, if necessary loosen threaded connection of center console bottom section (6) and tighten center console bottom section (6) without tension.	AR68.20-P-2400T
3	Disconnect connectors (1) (X39/37, X39/48)
4	Remove bolt (2)
5	Carefully unclip center console upper section (3) upward.	Risk of fracturing! Press in long wedge directly at clips (arrow).
			*115589035900
6	Disconnect connectors (4)
7	Remove brackets (5) for connectors from center console lower section (6)
8	Remove bolts (7)	Installation:  Ensure that center console bottom section (6) is installed without tension.
9	Remove center console lower section (6) upward
10	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
