Remove/install bottom paneling on D-pillar - AR68.30-P-4496T

MODEL 211.2

Shown on right D-pillar

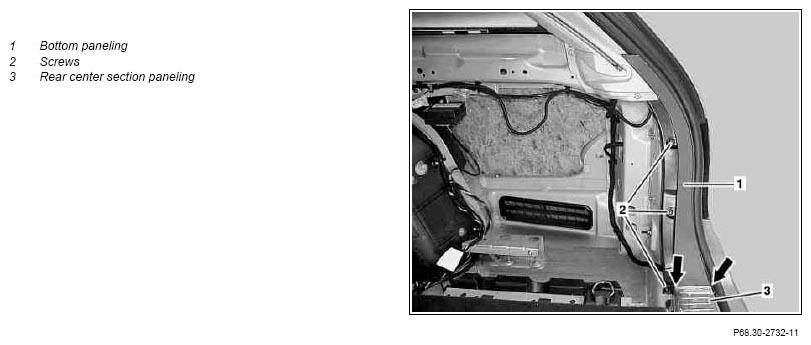

Fig 1: Identifying D-Pillar Bottom Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove left and right side load compartment inner side paneling		AR68.30-P-1180T
2	Fold up load compartment floor	See Operating Instructions
3	Unscrew screws (2)
4	Remove bottom paneling (1)	Installation:  Ensure that bottom paneling (1) is seated correctly on rear center section paneling (3) (arrows).
5	Install in the reverse order
