Retrofit cup holder - AN68.20-P-0002T

MODEL 211.0##/2## (except 211.076/077/276/277) 1# except CODE (336) Preinstallation for taximeter installation except CODE (941) Preinstallation for radio data transmission

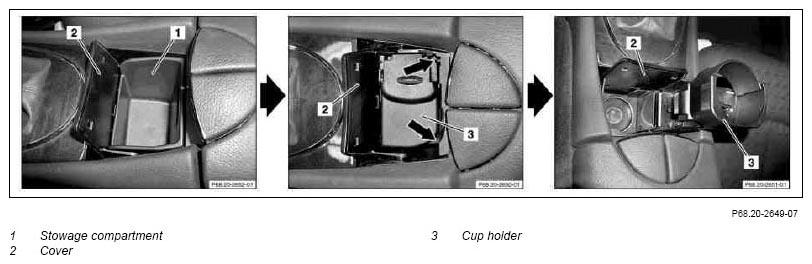

Fig 1: Identifying Stowage Compartment, Cup Holder And Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Open cover (2) and remove stowage compartment (1) upward in center console	Stowage compartment (1) is no longer required.
	Install
2	Insert cup holder (3) in guides (arrows) and close cover (2)	Catch lugs should catch audibly.
3	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach note "Cup holder retrofitted according to AN68.20-P-0002T " under field organization texts to KG68
