Remove/install automatic rear door switch - AR72.29-P-0130T
MODEL 211.2 with CODE (890) Automatic rear-end door
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect ground line on battery |
| Remove/install | |||
|---|---|---|---|

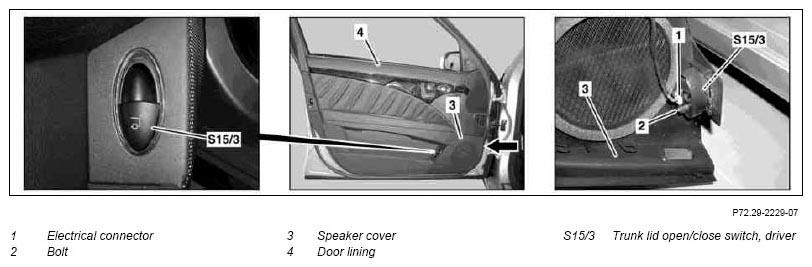

| 1 | Unclip speaker cover (3) from front (arrow) between door lining (4) and starting at speaker cover (3) all the way around with mounting wedge and remove. | *110589035900 | |
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Remove driver-side trunk lid open/close switch (S15/3) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform a function test |
