Entertainment, Navigation & Telephone -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
Universal Portable CTEL Interface (UPCI), location of components - GF82.70-P-0004-01T
Universal Portable CTEL Interface (UPCI), location of components - GF82.70-P-0004-01T

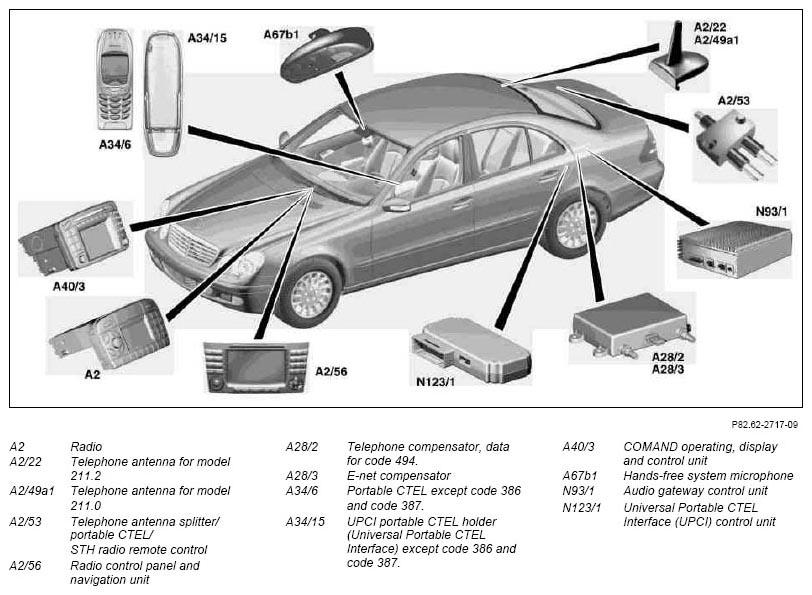

Fig 1: Locating Universal Portable CTEL Interface (UPCI) Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
