Telephone interface, location - GF82.70-P-3107-01TU

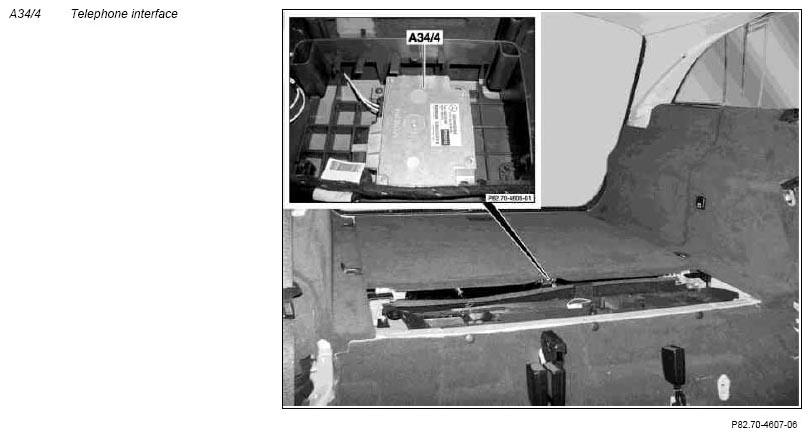

Fig 1: Locating Telephone Interface

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The telephone interface (A34/4) is located on the luggage compartment floor behind the rear bench seat.
