Telephone handset (D-network), location/task - GF82.70-P-4106T

MODELS 211.0/2 with CODE (381) MB phone "Standard" in console on right side of dome with CODE (383) With telephone "Standard" in console on right side of dome with integrated TELEAID emergency call system, hands-free system and antenna

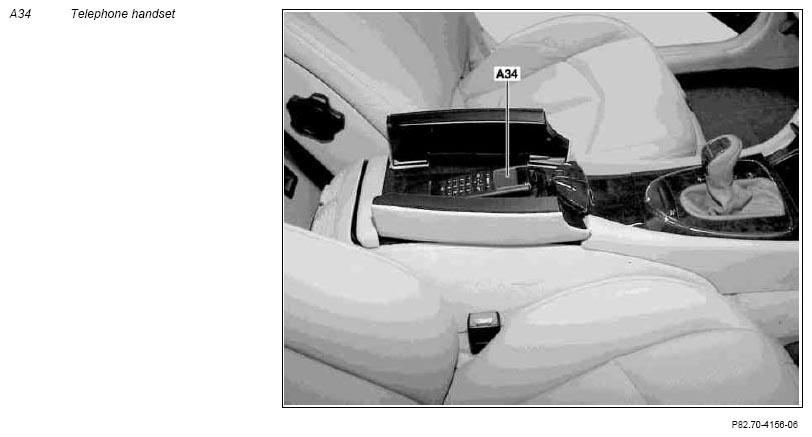

Fig 1: View Of Telephone Handset
G07285161Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Telephone handset (D-network), location The telephone handset (A34) is located in the armrest module between the rear seats.
Telephone handset (D-network), purpose
  • Enable voice connection
  • Holding telephone controls and display
  • Holding SIM card (Subscriber Identification Module)
  • Memory for storing names, numbers, short messages.
