TV tuner, location/task/design/function - GF82.60-P-3109TJ

MODEL 211.0/2 with CODE (529) HIGH Class Japan

Shown on model 211.0

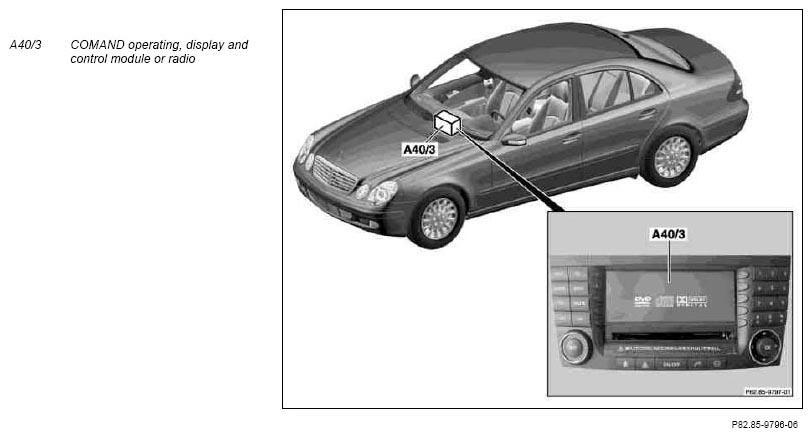

Fig 1: View Of COMAND Operating, Display And Control Module Or Radio - Shown On Model 211.0

G07285067

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

TV tuner location	The TV tuner is integrated in the COMAND operating, display and control unit (A40/3), which is installed in the center console between the operating module for interior AC (automatic air conditioning) and upper control panel.
TV tuner, purpose	To receive and process video and audio signals as well as communication with other system components via the optical MOST bus. Video and sound are played back via the COMAND operating, display and control unit (A40/3) and the vehicle's speakers.
TV tuner, design	4-fold antenna diversity, divided into audio/video signals TV tuner module for audio and video Receiver Signal processing
TV tuner, function		GF82.60-P-3109-02TJ
