SDAR control unit, component description - GF82.60-P-3200TXB
MODEL 211, 219 with CODE (536) SIRIUS satellite radio with CODE (494) USA version as of Model Year 9/AEJ 07
Shown on model 211.0

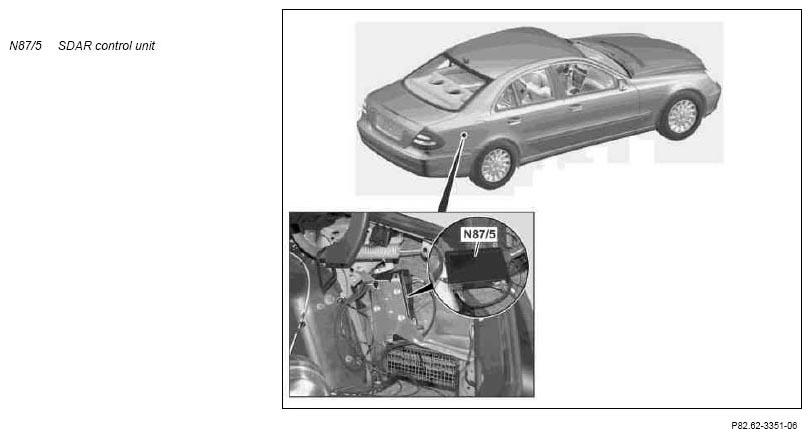

Location
The SDAR control unit is located behind the trunk lining at the right side of the trunk.
Task
The SDAR control unit has the following tasks:
- Receive signals for satellite S-band and terrestrial S-band with the integrated traffic information signals via a coaxial line from the SDAR antenna (A2/49a4).
- Decoding and amplifying the signals for satellite S-band and terrestrial S-band
- Transmitting the signals (audio, data, traffic information) to the COMAND operating, display and controller unit (A40/3) via the Media Oriented System Transport (MOST).
