Right antenna amplifier, component description - GF82.62-P-3135TMB
MODEL 211.2 with CODE (512) COMAND APS with DVD changer with CODE (527) COMAND APS with single DVD drive (with navigation) as of Model Year 9/AEJ 07
Location

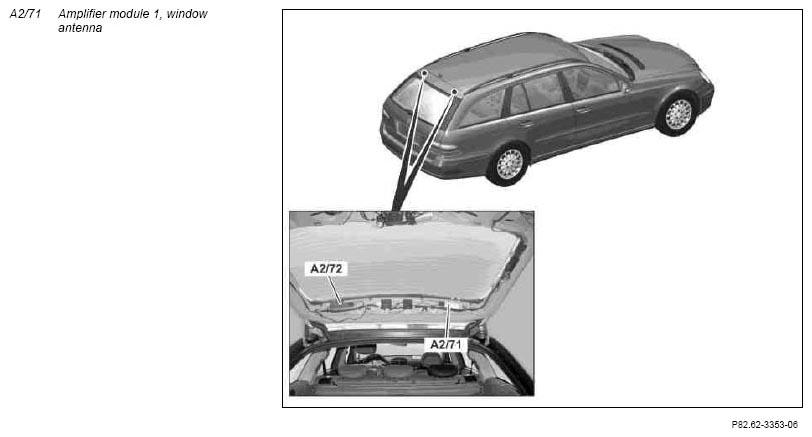

The amplifier module 1, window antenna is installed in the liftgate on the right above the rear window.
Tasks (ECE version)
Receiving and forwarding the TV signals (TV 2 to the TV combination tuner (analog/digital) (A90/1).
Tasks (with code 498 Japan version)
Reception, amplification and forwarding of FM signals. These signals are transmitted via the "FM 2 out" output of amplifier module 1, window antenna to the COMAND operating, display and controller unit (A40/3).
