Rear window antenna location/task/design/function - GF82.62-P-3106TS
MODEL 211.2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

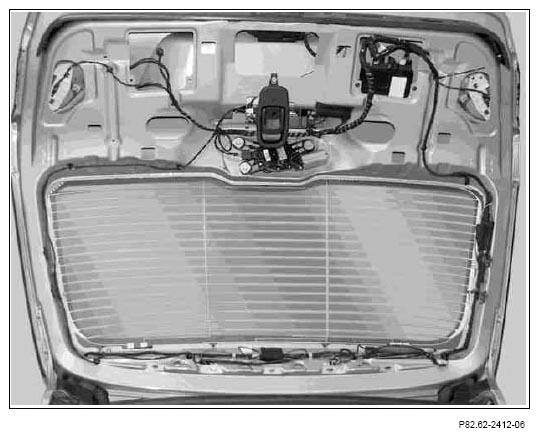

Shown on model 211.2
| Rear window antennas, location | The antennas (Radio and TV) are integrated in the heating wires of the rear window heater. The telephone antenna (A2/22) and the GPS antenna (A2/23) are installed at the top edge of the rear-end door. | |
| Rear window antennas, purpose | The antennas must convert the high-frequency (HF) oscillation of the electrical field in the air into a high-frequency AC voltage in an electrical conductor. | |
| Rear window antennas, design | The antennas are part of the heating wires of the rear window heater. A block circuit consisting of a number of inductive coils is integrated into the heating wires. | |
| Rear window antennas, function | GF82.62-P-3106-04TS |
