Left antenna amplifier module, component description - GF82.62-P-3121TMU

MODEL 211.0/2 as of 1.7.06 with CODE (530) COMAND APS USA (with navigation system)

Shown on model 211.0

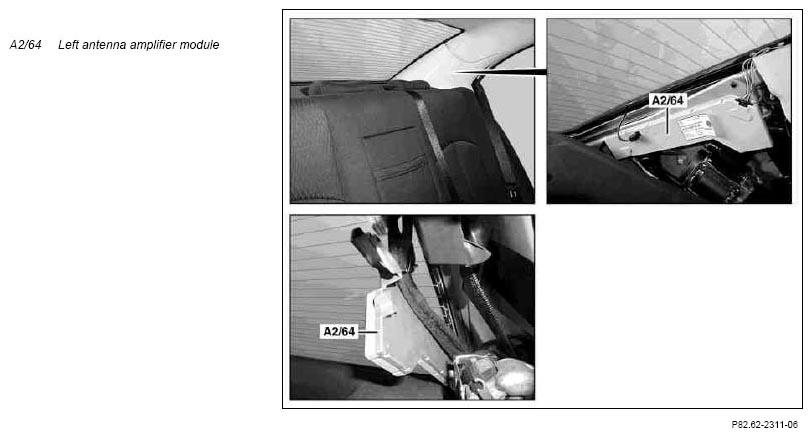

Fig 1: Locating Left Antenna Amplifier Module - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The left antenna amplifier module is mounted to the left of the C-pillar in the direction of travel.

Task

• Receiving and forwarding the AM/FM signals via the amplifier module 1, window antenna (A2/71) to the audio gateway control unit (N93/1)
• Decoupling the rear window from the body mass and the wiring harness via a block circuit
