GPS antenna, location/task - GF82.62-P-4107TSU
MODEL 211.2 up to 30.6.06 with CODE (528) HIGH Class USA

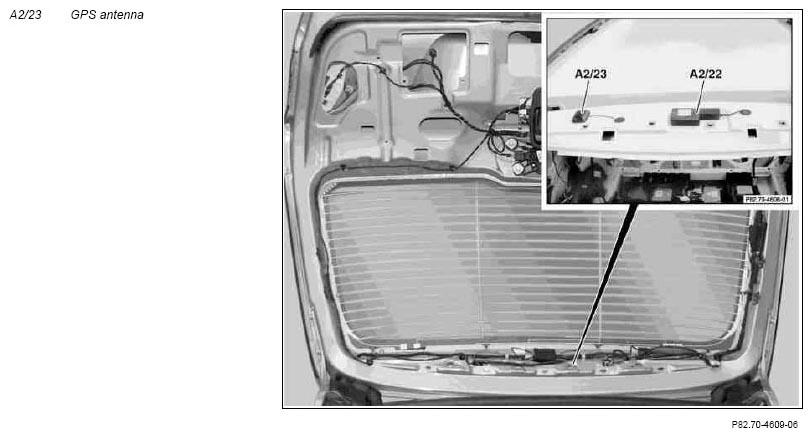

| GPS antenna, location | The GPS antenna (A2/23) is installed under the paneling at the upper edge of the rear window. |
| GPS antenna, task | The GPS antenna (A2/23) is an active antenna and is supplied with energy from the communications platform. It supplies the navigation processor (N41/1) and emergency call system with the position data from the navigation satellites. |
