GPS antenna, location/task - GF82.62-P-4107TS
MODEL 211.2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
Location

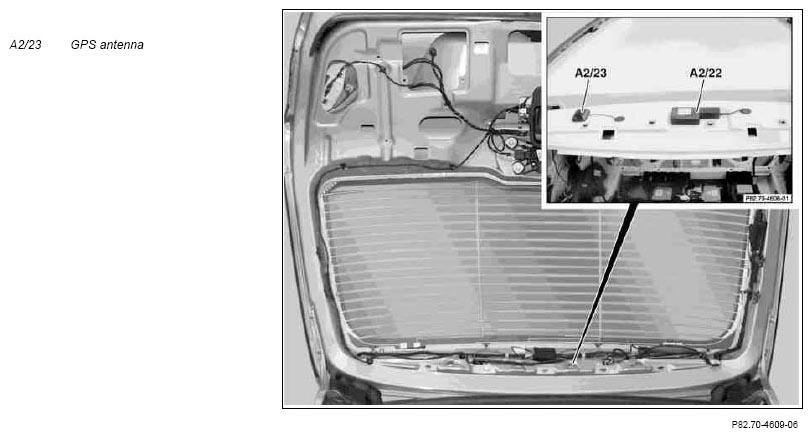

| GPS antenna, location | The GPS antenna (A2/23) is installed under the paneling at the upper edge of the rear window. |
| GPS antenna, task | The GPS antenna (A2/23) is an active antenna and is supplied with energy by the communications platform. It supplies the navigation processor (N41/1) and the emergency call system with the position data of the navigation satellites. |
