Digital TV tuner, component description - GF82.60-P-3118TJA
MODEL 211, 219 with CODE (865) TV tuner with CODE (498) Japan version as of Model Year 9/AEJ 07

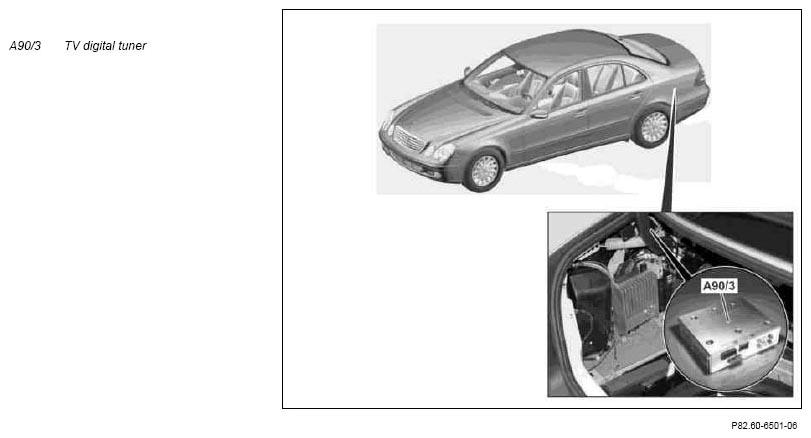

Shown on model 211.0

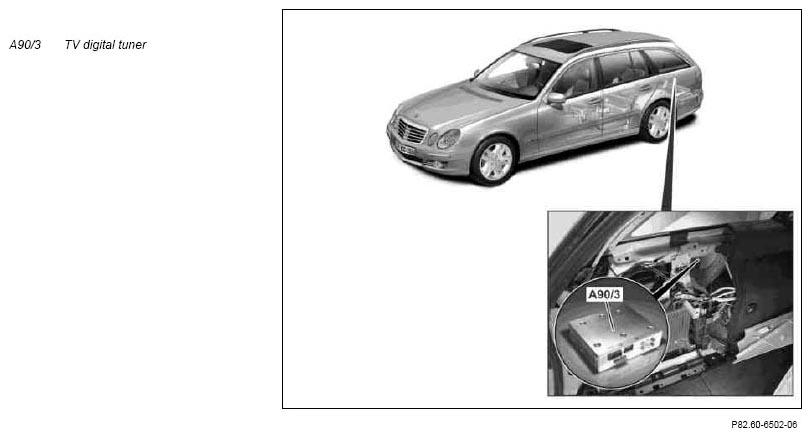

Shown on model 211.2
Location
The digital TV tuner is screwed to a bracket at the left side of the trunk.
Task
The digital TV tuner has the following tasks:
- Reading in digital TV signals
- Evaluating input factors
- Output of output values
- Exchange of control commands and transfer of audio signals and data for the auxiliary TV services (e.g. videotext, DVB-T data services)
Reading in digital TV signals
The input factors are read in with the following connections:
- Antennas for reception of digital TV signals
- Digital TV signals via:
- TV 1 and TV 2 antenna (model 211.0, 219)
- Left antenna amplifier module (A2/64)
- TV 3 and TV 4 antenna (model 211.0, 219)
- Right antenna amplifier module (A2/65)
- TV 1 and TV 2 antenna (model 211.2)
- Right antenna amplifier module (A2/65)
- TV 3 and TV 4 antenna (model 211.2)
- Window antenna amplifier module 2 (A2/72)
- TV 1 and TV 2 antenna (model 211.0, 219)
Evaluation of input factors
The amplified TV signals are evaluated internally and separated into video and audio signals.
- Power supply via circuit 31 and circuit 30g over one direct line each
- Electronic wake-up for Media Oriented System Transport (MOST) via one direct line
Output of output values
The output values are output via the following connection:
- Control/power supply antenna amplifier
- Y/C line (video output)
Exchange of control commands and transfer of audio signals and data for the auxiliary TV services (e.g. videotext, DVB-T data services)
MOST signals
- Control data
- Audio signals
- Additional data for videotext, etc.
