Destination guidance, function - GF82.61-P-3012TU

MODEL 211.0/2 up to 30.6.06 with CODE (528) HIGH Class USA

Overview of digitized and non-digitized

DVD map areas

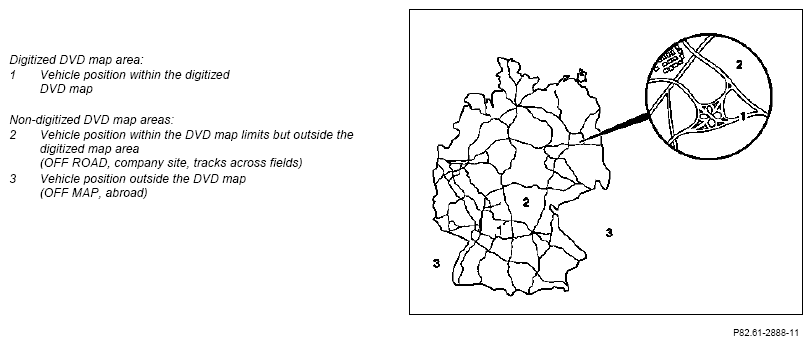

Fig 1: Identifying DVD Map Areas

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The road network shown is illustrated in a highly simplified manner.

Route guidance, function

Destination guidance includes making up and outputting driving recommendations to guide the driver to the desired destination.

The prerequisites of destination guidance include:

Constant location finding is in operation.
The trip destination has been entered.
Route has been calculated.

The navigation processor (N41/1) continuously compares the route calculation data with the position finding data and derives from this the measures for continued navigation.

Depending on the position of the vehicle, a distinction is made between the following two modes of navigation (see picture):

Navigation within the digitized DVD map area
Restricted navigation outside the digitized DVD map area

With code (527) navigation module for COMAND and code (528) HIGH Class USA the external navigation module is designated navigation processor (N41/1).

Destination guidance in digitalized map area, function

GF82.61-P-4000TU
