Compensator, location/task - GF82.70-P-3109T
MODEL 211.0/2 as of 1.6.04 with CODE (388) "Portable CTEL" UPCI telephone system with CODE (387) Preinstallation for "portable CTEL" telephone UPCI system, USA/Canada with CODE (386) Preinstallation for "portable CTEL" UPCI telephone system
MODEL 211.0/2 up to 30.5.04 with CODE (380) Preinstallation for MB portable CTEL telephone, complete with CODE (381) MB "Standard" telephone in console on right side of dome with CODE (382) MB portable "CTEL" telephone in console on right side of dome with CODE (853) MB standard portable CTEL telephone with CODE (854) MB portable CTEL telephone
MODEL 211.0/2 with CODE (383) With "Standard" telephone in console on right side of dome with integrated TELE AID emergency call system, hands-free system and antenna

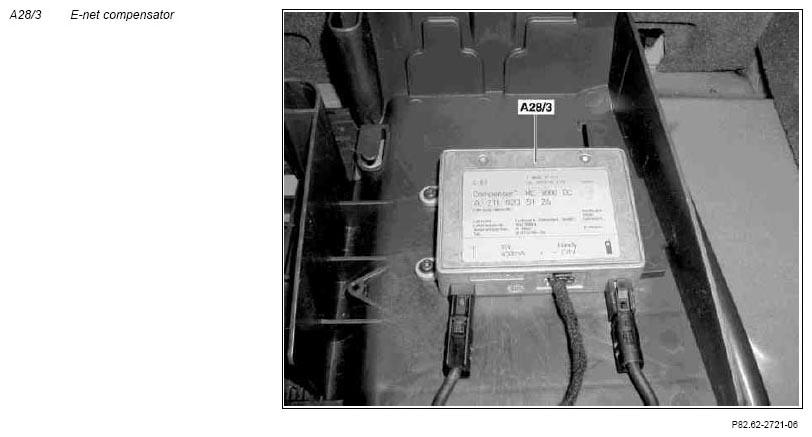

| Compensator, location | The E-net compensator (A28/3) is located on the luggage compartment floor behind the rear bench seat. |
| Compensator, purpose | When telephoning (E-net), transmission and reception losses may occur in the antenna line. The tasks of the E-net telephone compensator (A28/3) is to compensate these losses. |
