Compensator component description - GF82.70-P-3110TM

MODEL 211.0/2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 as of 1.7.06 with CODE (494) USA version

Shown on model 211.0 with code 530 COMAND APS USA (with navigation system)

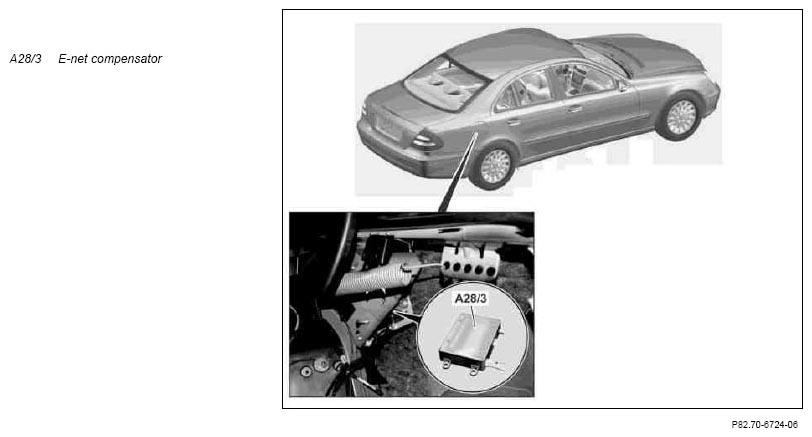

Fig 1: Locating E-Net Compensator - Shown On Model 211.0 With Code 530 COMAND APS USA (With Navigation System)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The E-net compensator is accommodated in the right rear of the luggage compartment in the side wall.

Shown on model 211.0 with CODE 527 COMAND APS with single DVD drive (with navigation system)

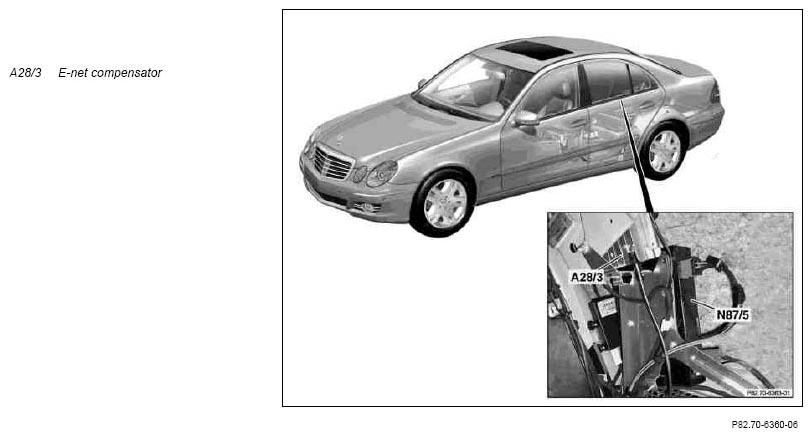

Fig 2: Locating E-Net Compensator - Shown On Model 211.0 With Code 527 COMAND APS With Single DVD Drive (With Navigation System)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The E-net compensator is installed on the equipment bridge in the left of the luggage compartment in front of the spare tire well.

Shown on model 211.0 as of model year 09

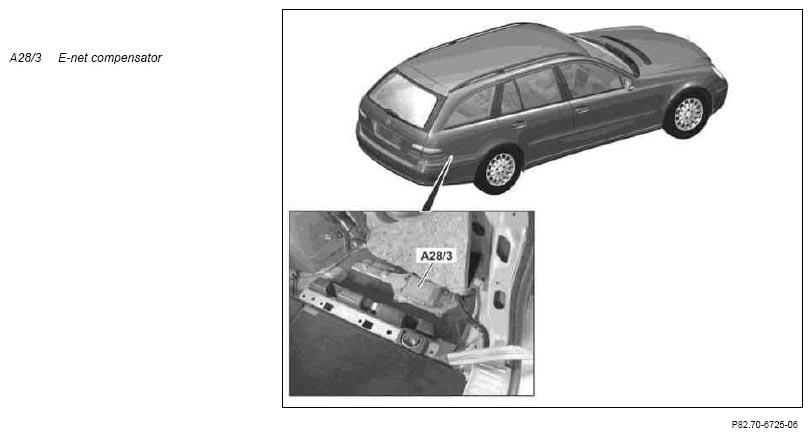

Fig 3: Locating E-Net Compensator - Shown On Model 211.0 As Of Model Year 09

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The E-net compensator is located in the right rear of the trunk on a bracket on the wheel arch.

Shown on model 211.2 as of model year 09

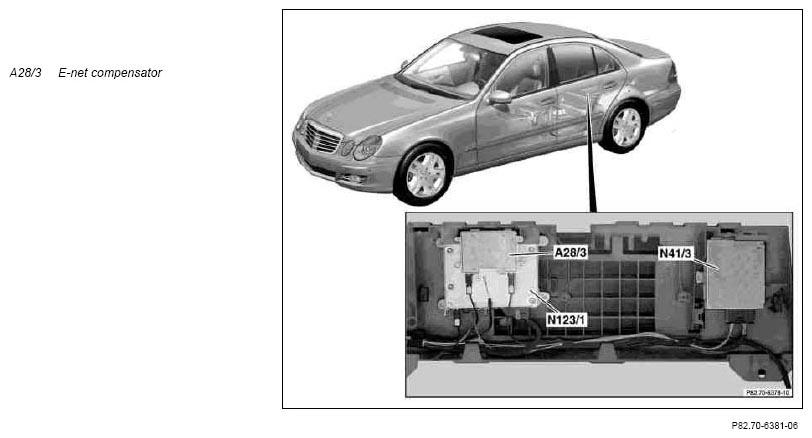

Fig 4: Locating E-Net Compensator - Shown On Model 211.2 As Of Model Year 09

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The E-net compensator is located in the right rear of the trunk on the floor of the vehicle.

Tasks

Due to physical reasons, using mobile phones may cause transmission and reception losses in the antenna line. The E-net compensator compensates for these losses, thus ensuring high accessibility even in areas with poor reception.
