CD player with changer component description - GF82.64-P-3112TM
MODEL 211.0/2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0/2 as of 1.7.06 with CODE (494) USA version
Task

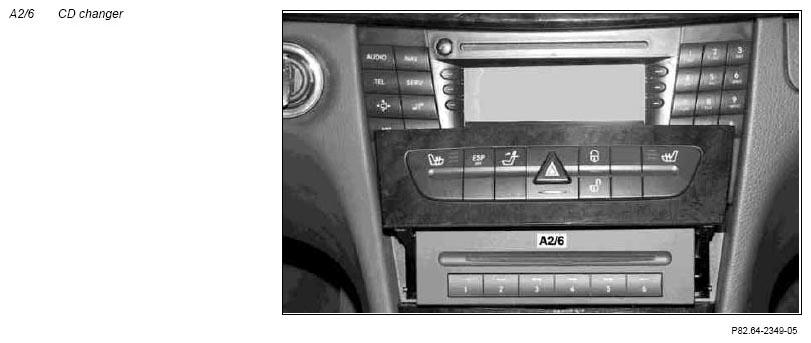

The CD changer is installed in the 3rd installation opening of the center console below the COMAND operating, display and controller unit (A40/3). It is concealed by the upper control panel control unit (N72/1).
Design
- 6-disk CD changer magazine
- Media Oriented System Transport (MOST) interface
- Wake-up line
The ex-factory planned installation position of the CD changer is horizontal. However, other installation positions are possible through the spring adaptation.
