Auto pilot system (APS) block diagram - GF82.61-P-0001-02TXB

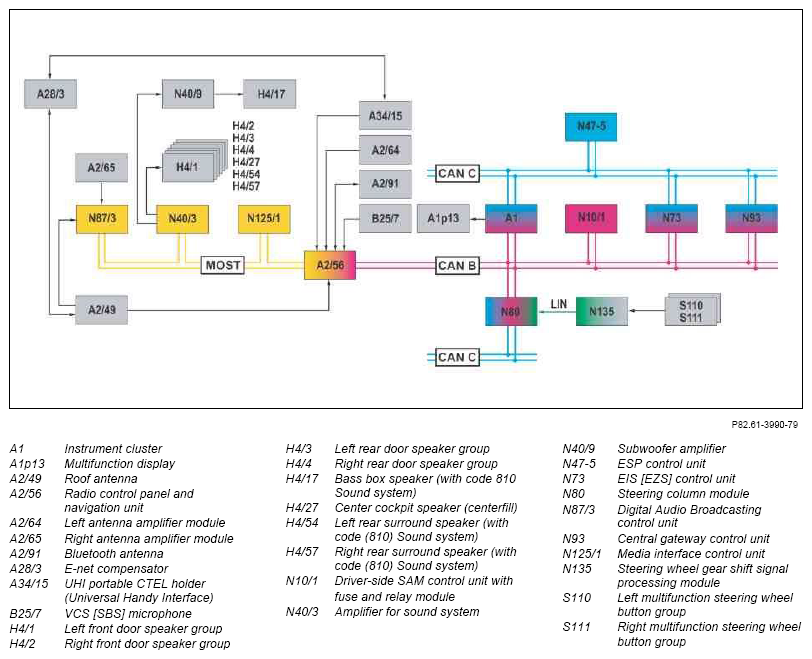

Fig 1: Auto Pilot System (APS) Block Diagram

G07285081

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
