Audio 50 APS networking of components - GF82.61-P-0003-03TM

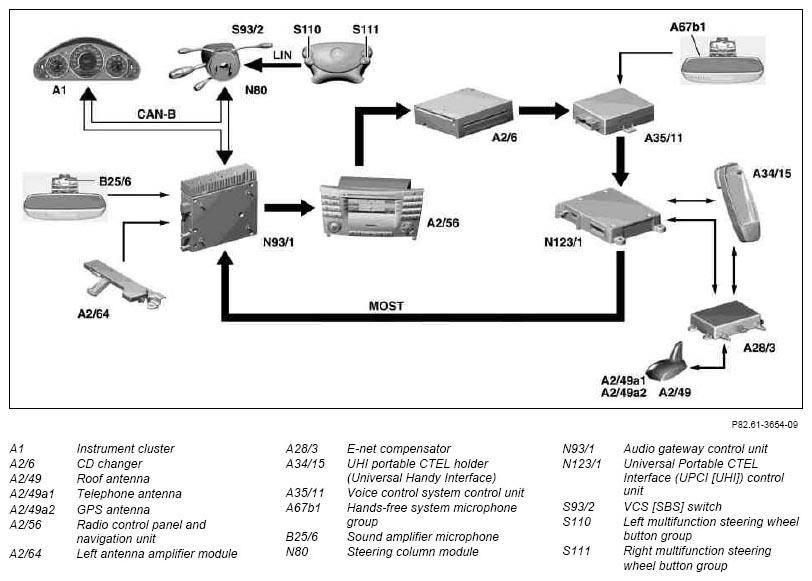

Fig 1: Networking Of Audio 50 APS Components

G07285082

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
