Antenna splitter, component description - GF82.62-P-3136TM

MODEL 211.0/2 as of 1.7.06 with CODE (530) COMAND APS USA (with navigation system)

MODEL 211.0/2 with CODE (512) COMAND APS with DVD changer with CODE (528) COMAND with DVD changer with CODE (494) USA version as of Model Year 9

Shown on model 211.0

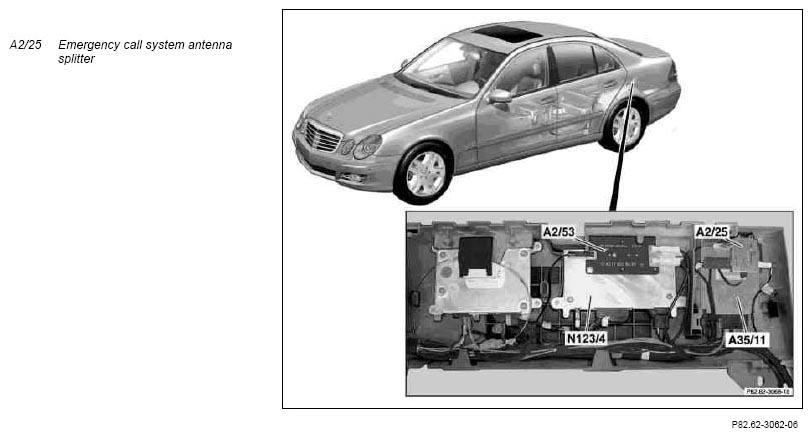

Fig 1: Locating Emergency Call System Antenna Splitter - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The emergency call system antenna splitter is installed on the equipment bridge in the luggage compartment in front of the spare tire well.

Task

Upon activation of service (e.g. emergency call), the emergency call system antenna splitter switches the telephone signal through to the emergency call system control unit (N123/4).
