Antenna amplifier module, location/task/design/function - GF82.62-P-3105T
MODEL 211.0/2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
Shown on model 211.0

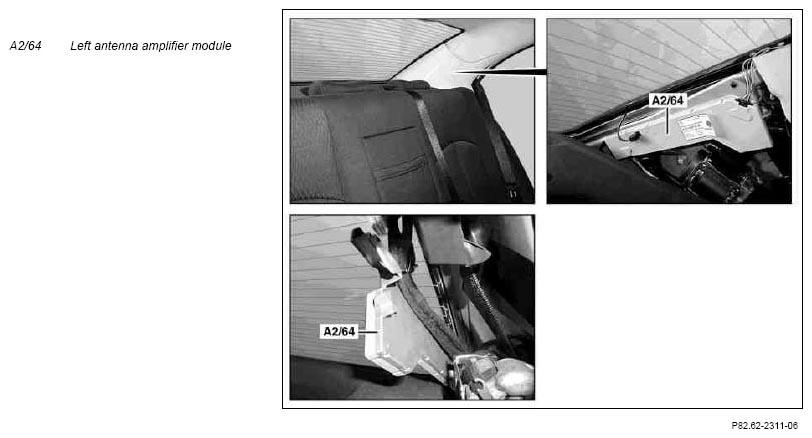

| Antenna amplifier module, location | in case of MODEL 211.0 The left antenna amplifier module (A2/64) is attached to the C-pillar on the left in the direction of travel. The right antenna amplifier module (A2/65) is fitted at the same position on the opposite side. Model 211.2 |
GF82.62-P-3105-01T |
| Antenna amplifier module, purpose | Contacting of the rear window antennas in model 211.0, contacting of the side window antennas in model 211.2, automatic selection of the optimal FM and TV antennas (antenna diversity) and amplification and filtering of all antenna signals | |
| Antenna amplifier module, design | The right antenna amplifier module (A2/65) contains the filter, 2 TV amplifiers with antenna diversity and the blocking circuit. The left antenna amplifier module (A2/64) contains the filter, the AM/FM amplifier and the radio remote central locking receiver. | |
| Antenna amplifier module, function | GF82.62-P-3105-04T |
