Antenna amplifier module, location - GF82.62-P-3105-01TU
Shown on model 211.2

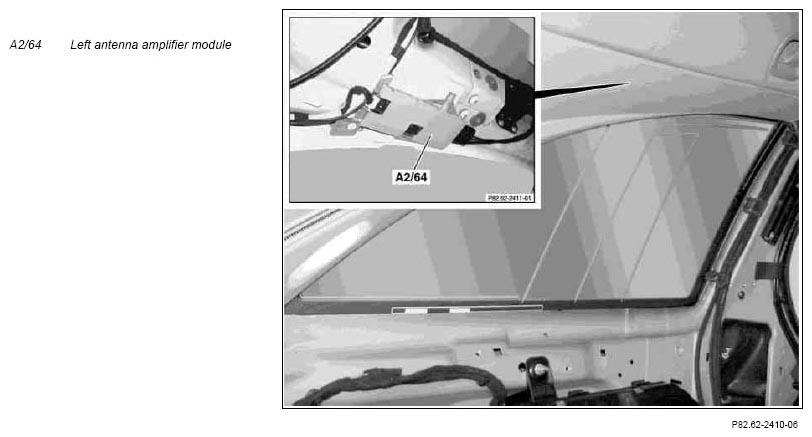

The left antenna amplifier (A2/64) is installed above the left side window and is always provided in the vehicle. In vehicles with FM diversity it is supplemented by the window antenna amplifier module 1 (A2/71) in the right of the tailgate. The antennae for radio reception are integrated in the left side window and in the rear window.
With code (528) HIGH Class USA the right antenna amplifier (A2/65) is fitted above the right side window and in conjunction with the window antenna amplifier module 2 (A2/72) in the left of the tailgate is responsible for television reception. The antennae for television reception are integrated in the right side window and in the rear window.
