Retrofit vehicle video system - AZ82.60-P-0004T
MODEL 211.2 except CODE (450) Taxi version except CODE (979) Special protection version
Rear Seat Entertainment System (RSES)
| Remove | |||
| 1 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003TA | |||
| 3 | Raise rear bench seat | ||
| 4 | Open rear SAM control unit with fuse and relay module | ||
| Install | |||

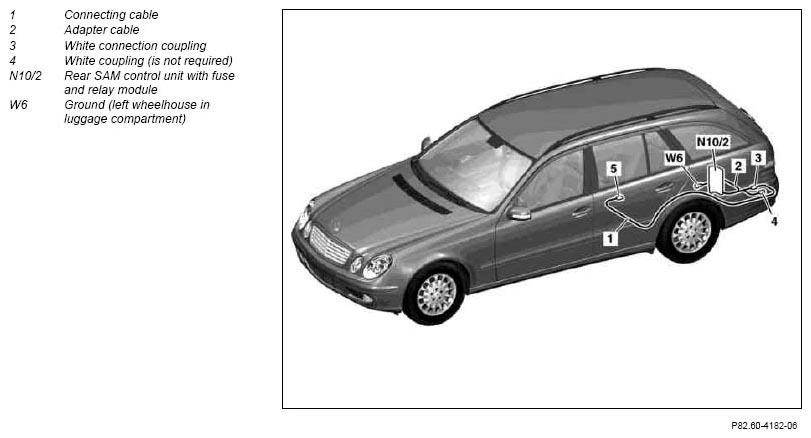

| 5 | Retrofit wiring harness. | AZ82.70-P-0001-04TT | |
| 6 | Install Rear Seat Entertainment System (RSES) | ||
| 7 | Connect Rear Seat Entertainment System (RSES) |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 66 02 | Basic kit | 1 |
| B6 782 6612 | Screen | 1 |
| B6 782 6605 | DVD player including remote control for: Europe, Japan, South Africa and Middle East, incl. Egypt | 1 |
| B6 782 6604 | DVD player including remote control for: Canada, USA and American Territories | If necessary |
| B6 782 6606 | DVD player including remote control for: South East Asia and East Asia, incl. Hong Kong | If necessary |
| B6 782 6607 | DVD player including remote control for: Australia, New Zealand, Pacific Islands, Central and South America, Caribbean | If necessary |
| B6 782 6608 | DVD player including remote control for: former Soviet Union, Indian subcontinent, Africa, North Korea, Mongolia | If necessary |
| B6 782 6609 | DVD player including remote control for: China | If necessary |
| B6 788 5150 | Cable set accessory SAM-H (rear) | 1 |
| B6 782 6610 | Headphones - passive NoiseGuard | If necessary |
| Commercially available | 7.5 Amp fuse | If necessary |
| A002 542 12 19 | Relay | 1 |
