Retrofit wiring harness. - AN82.61-P-0001-01TGG

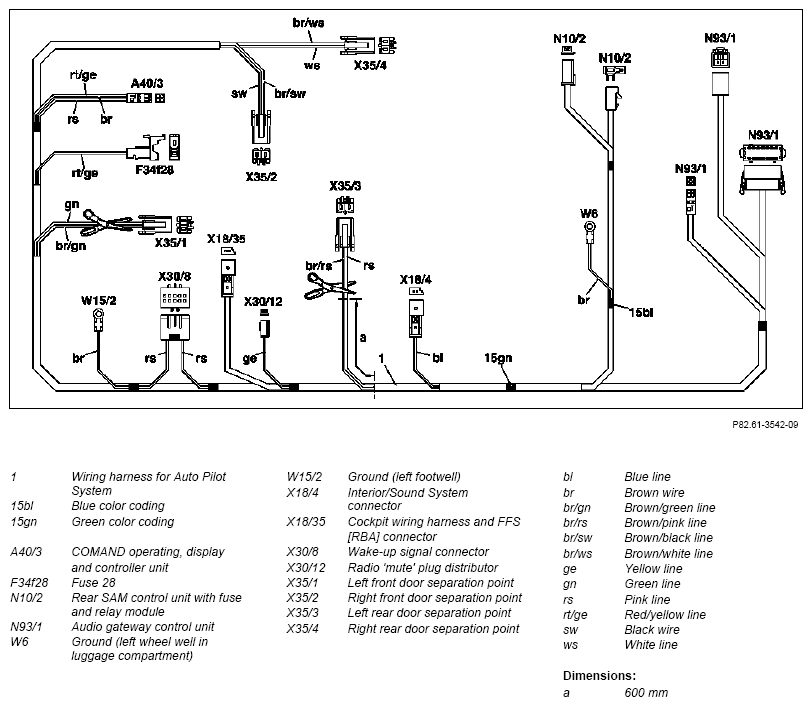

Wiring harness actual status Auto pilot system (1)

Fig 1: Identifying Wiring Harness Actual Status Auto Pilot System Components
G07274875Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Cut off branch-off line (no longer required) with white 2-pin coupling of left rear door separation point (X35/3) from auto pilot system wiring harness (1) in accordance with dimension (a).
  2. Cut off white 2-pin coupling of left front door separation point (X35/1) from branch-off line.
  3. Use solder connectors to extend the green line (gn) and the brown/green line (br/gn) with an 800 mm long identically colored line, cross section 1.5 mm 2.

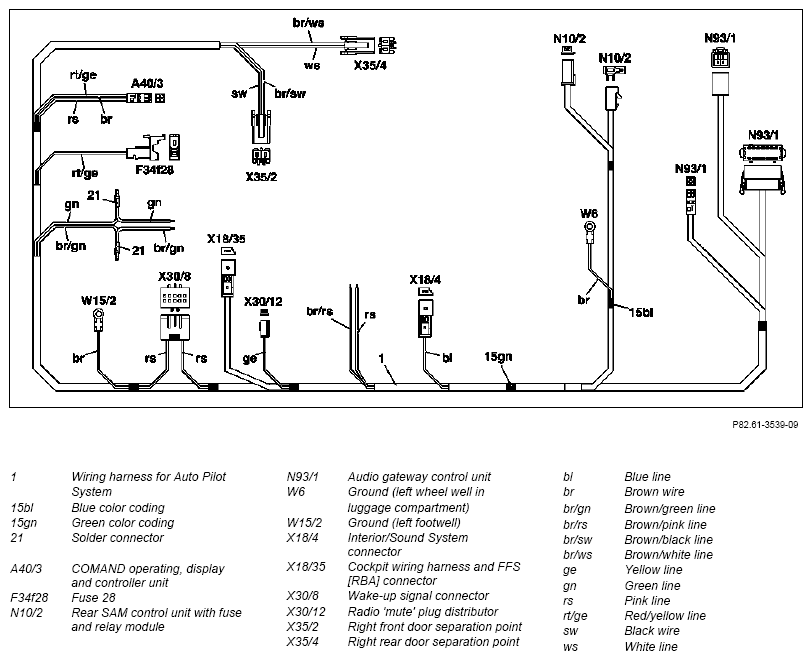

    Wiring harness target condition Auto pilot system (1)

    Fig 2: Identifying Wiring Harness Target Condition Auto Pilot System Components
    G07274876Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

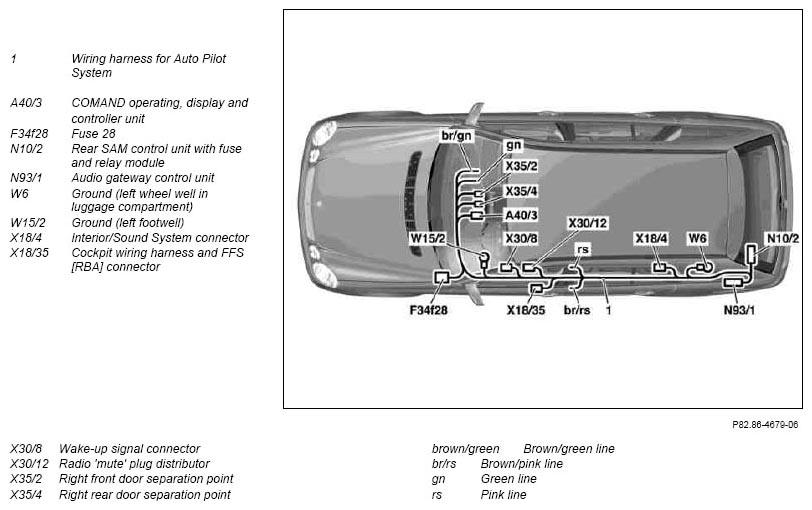

    Wiring harness routing diagram for Auto Pilot System (1)

    Fig 3: Wiring Harness Routing Diagram For Auto Pilot System
    G07274877Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    IMPORTANT The auto pilot system wiring harness is routed forward starting from the left of the trunk.

  4. Connect black 1-pin coupling (3) with red line (rt) from auto pilot system wiring harness to slot 28 (arrow B) on the rear SAM control unit with fuse and relay module (N10/2).
  5. Connect green 2-pin coupling (2) with brown and brown/red line from auto pilot system wiring harness to slot 11 (arrow A) on the rear SAM control unit with fuse and relay module (N10/2).

    IMPORTANT Slot 11 (arrow A) is colored green.

    Fig 4: Identifying 1-Pin Coupling, 2-Pin Coupling And Fuse And Relay Module
    G07254028Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  6. Connect brown line (br) from the auto pilot system wiring harness (1) to ground (left wheel arch in trunk) (W6).
  7. Route auto pilot system wiring harness (1) along on-board wiring harnesses into the left rear footwell and attach to the on-board wiring harness.

    IMPORTANT The blue and green color coding on the auto pilot system wiring harness (1) must match the identically colored markings on the on-board wiring harness (arrows C).

    Fig 5: Routing Of Auto Pilot System Wiring Harness
    G07274858Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  8. Fasten auto pilot system wiring harness (1) as shown in interior on left wheel arch to on-board wiring harness.
    Fig 6: Identifying Auto Pilot System Wiring Harness
    G07254030Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  9. Expose and separate the standard white 2-pin interior/sound system connector (X18/4) with blue line (bl) in the left rear cable duct.
  10. Connect the white 2-pin connector from the auto pilot system wiring harness (1) with the standard installed 2-pin coupling and route into the left rear cable duct.

    IMPORTANT The standard 2-pin connector is no longer required and strapped down in the cable duct.

  11. Route Auto Pilot System wiring harness (1) further forward in the cable duct.
    Fig 7: Identifying 2-Pin Interior/Sound System Connector With Blue Line
    G07254032Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  12. Expose and separate pink line (rs) and brown/pink line (br/rs) of standard installed wiring harness, which is routed through the B-pillar to the left rear door, as shown.

    IMPORTANT The lines have a cross section of 1.5 mm 2 and are twisted with each other. In the area shown here there are two subharnesses with pink lines (rs) and brown/pink lines (br/rs) downstream of the left rear speaker group connector sleeves. Make sure that the subharness routed through the B-pillar to the left rear door is separated.

  13. Use a solder connector to connect the pink line (rs) of the standard installed wiring harness, which is routed through the B-pillar to the left rear door, with the pink line (rs) from the auto pilot system wiring harness (1).
  14. Use a solder connector to connect the brown/pink line (br/rs) of the standard installed wiring harness, which is routed through the B-pillar to the left rear door, with the brown/pink line (br/rs) from the auto pilot system wiring harness (1).
  15. Use felt tape to insulate the pink line (rs) and brown/pink line (br/rs) of the standard installed wiring harness, which is routed to the front, and route into the cable duct.
    Fig 8: Identifying Auto Pilot System Wiring Harness And Brown/Pink Lines
    G07254033Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  16. Detach both pink lines of black 10-pin wake-up signal connector (X30/8) from auto pilot system wiring harness (1) and install in any contact cavity of the vehicle's installed black 10-pin wake-up signal connector (X30/8).

    IMPORTANT If there is no black 10-pin wake-up signal connector (X30/8) installed in the cable duct, fasten the black 10-pin wake-up signal connector (X30/8) from the auto pilot system wiring harness (1) to the given bracket in the cable duct.

    Fig 9: Identifying 10-Pin Wake-Up Signal Connector And Auto Pilot System Wiring Harness
    G07254034Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. 17.1 Strap down violet 2-pin radio 'mute' plug distributor (X30/12) (no longer required) of the auto pilot system wiring harness (1) in the cable duct

    IMPORTANT For vehicles without code (272) Non-networked telephone preinstallation with telephone antenna or without code (273) Cell phone telephone preinstallation (non-networked) VDA wiring

  2. 17.2 Expose radio 'mute' plug distributor (X30/12) in left front cable duct, separate it and strap down the connector (no longer required) for the vehicle's installed radio 'mute' plug distributor (X30/12) in the cable duct.

    IMPORTANT For vehicles with code (272) Non-networked telephone preinstallation with telephone antenna or with code (273) Cell phone telephone preinstallation (non-networked) VDA wiring.

  3. 18 Connect connector of yellow line (ge) of radio 'mute' plug distributor (X30/12) from auto pilot system wiring harness (1) with vehicle's installed coupling of radio 'mute' plug distributor (X30/12) and insert into cable duct.

    IMPORTANT For vehicles with code (272) Non-networked telephone preinstallation with telephone antenna or without code (273) Cell phone telephone preinstallation (non-networked) VDA wiring.

  4. 19 Expose white 2-pin connector for cockpit wiring harness and FFS [RBA] (X18/35) in cable duct, separate it and strap down the white 2-pin coupling (no longer required) in the cable duct.
  5. 20 Connect the white 2-pin coupling of the auto pilot system wiring harness (1) with the white 2-pin connector to the cockpit wiring harness and FFS [RBA] connector (X18/35) and place into cable duct.
  6. 21 Connect brown line (br) from auto pilot system wiring harness (1) to ground (left footwell) (W15/2).
  7. 22 Branch off red/yellow line (rt/ge) with Bordeaux red fuse carrier for fuse 28 (F34f28) and branch-off line with black 4- pin coupling for COMAND operating, display and controller unit (A40/3) from wiring harness for auto pilot system (1) (arrows D).

    IMPORTANT Branch off red/yellow line (rt/ge) with Bordeaux red fuse carrier for fuse 28 (F34f28) far enough away from wiring harness for auto pilot system (1) that it can be routed from the footwell to the interior fuse box.

    Branch off branch-off line with black 4-pin coupling for COMAND operating, display and controller unit (A40/3) far enough away from wiring harness for auto pilot system (1) that it can be routed together with the wiring harness for auto pilot system (1) from the footwell to the radio recess.

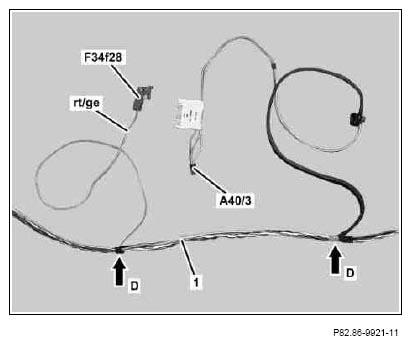

    Fig 10: Identifying Display And Controller Unit, Fuse 28 And Red/Yellow Line
    G07254074Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  8. 23 Continue routing the wiring harness for Auto Pilot System (1) along the parking brake cable (16) to the radio recess and secure in place.
  9. 24 Route red/yellow line (rt/ge) with Bordeaux red fuse carrier to the interior fuse box (F34).
  10. 25 Remove existing Bordeaux red fuse carrier (no longer required) for fuse 28 (F34f28) from interior fuse box (F34) and strap down.
  11. 26 Insert Bordeaux red fuse carrier from wiring harness for Auto Pilot System (1) into slot 28 of the interior fuse box (F34).
    Fig 11: Routing Of Red/Yellow Line To Interior Fuse Box
    G07254036Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  12. 27 Fix in place red/yellow line (rt/ge) of Bordeaux red fuse carrier for fuse 28 (F34f28) on wiring harness for auto pilot system (1).

    IMPORTANT Plug position 28 is color coded.

  13. 28 Wrap felt tape around the antenna line (17) (no longer required) and strap down.
  14. 29 Remove brown 8-pin coupling (18) from black coupling carrier (20).
  15. 30 Wrap felt tape around the black coupling carrier (20) and the white 8-pin coupling (19) (no longer required) and strap down.
  16. 31 Route white 2-pin couplings (no longer required) of the right front door separation point (X35/2) and right rear door separation point (X35/4) as per picture into the radio recess and shorten excess length.
  17. 32 Route branch-off line with the extended green line (gn) and the brown/green line (br/gn) into the radio recess as per picture.
  18. 33 Use solder connector (22) to connect the white and brown/white lines of the right rear door separation point (X35/4) with the identically colored lines of the brown 8-pin coupling (18).
  19. 34 Use solder connector (22) to connect the black and brown/black lines of the right front door separation point (X35/2) with the identically colored lines of the brown 8-pin coupling (18).
    Fig 12: Identifying Right Front/Rear Door Separation Points And 8-Pin Coupling
    G07254037Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  20. 35 Use solder connector (22) to connect the extended green line (gn) and brown/green line (br/gn) with the identically colored lines of the brown 8-pin coupling (18).
  21. 36 Wrap felt tape around brown 8-pin coupling (18) with the solder connectors (22) and strap down in the radio recess.
