Retrofit CD changer wiring harness - AN82.64-P-0001-01T

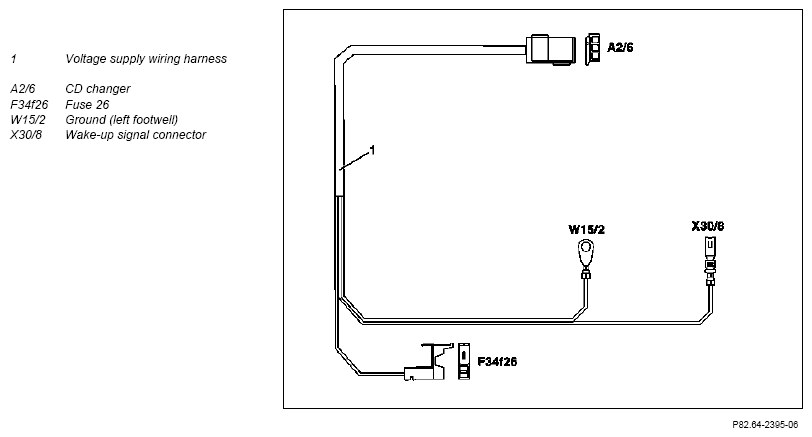

Connection schematic of power supply wiring harness (1)

Fig 1: Connection Schematic Of Power Supply Wiring Harness

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

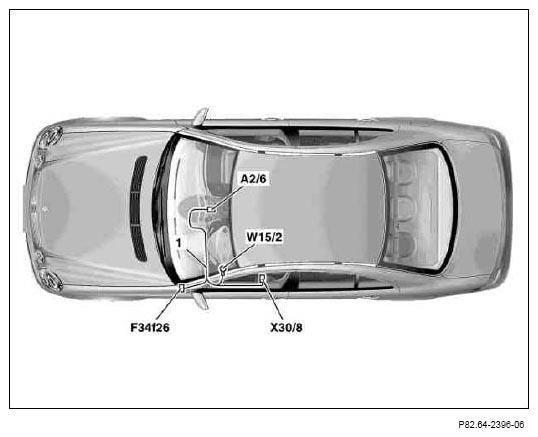

Routing diagram for power supply wiring harness (1)

Route power supply wiring harness (1), as shown, to the CD changer (A2/6), fuse 26 (F34f26), ground (left footwell) (W15/2) and to the wake-up signal connector (X30/8) and fix in place using adhesive tape and cable tie.

Fig 2: Routing Diagram For Power Supply Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

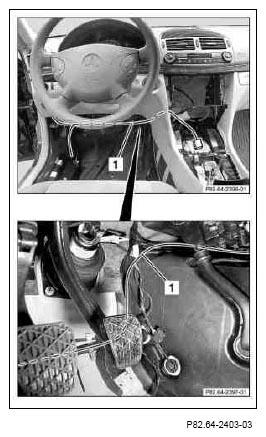

Route black 3-pin coupling of power supply wiring harness (1) from front left footwell to restraint systems control unit along existing lines and to foot-brake cable and fix in place.

Fig 3: Identifying Black 3-Pin Coupling Of Power Supply Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Connect brown line (br) from power supply wiring harness (1) to ground (left footwell) (W15/2).
Route pink line (rs) of power supply wiring harness (1) along existing lines in left front footwell cable duct to black 10-pin wake-up signal connector (X30/8) and fix in place.

Fig 4: Identifying Black 10-Pin Wake-Up Signal Connector With Pink Line Of Power Supply Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert pink cable (rs) into contact cavity 3 of black 10-pin wake-up signal connector (X30/8).

Fig 5: Inserting Pink Cable Into Black 10-Pin Wake-Up Signal Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route red line (rt) with fuse 26 (F34f26) from left front footwell to the interior fuse box (F34) and fix in place.
Insert fuse 26 (F34f26) into slot 26 of interior fuse box (F34).
Fuse 26 (F34f26) has a rating of 7.5 A.

Make loops out of excess length of power supply wiring harness (1) and fix in place at existing wiring harnesses using cable ties.
