TV tuner, location/task/design/function - GF82.60-P-3109TA

Model 211.0/2 up to 31.5.05 with CODE (527) COMAND APS (with navigation) with CODE (860) TV tuner

Shown on model 211.0

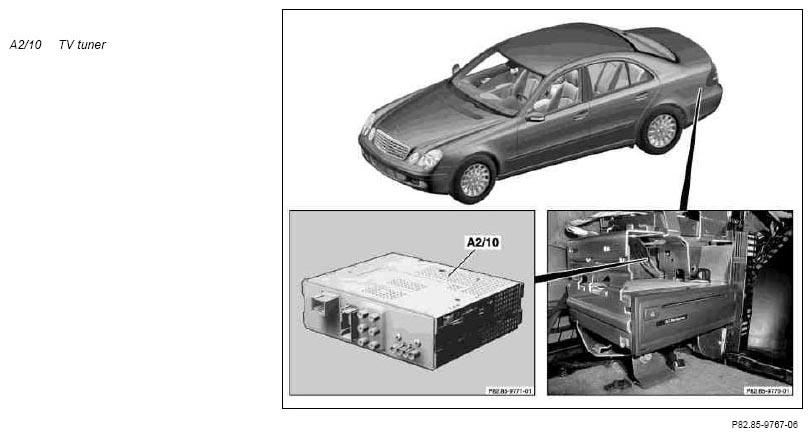

Fig 1: View Of TV Tuner - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

TV tuner location	The TV tuner (A2/10) on models 211.0/2 is located at the side wall behind the left, inner wheelhouse liner above the navigation processor (N41/1).
TV tuner, task	Reception and processing of analog video and audio signals Forwarding of video and audio signals to the COMAND operating, display and control unit (A40/3) and the audio gateway control unit (N93/1)
TV tuner, design	4-fold antenna diversity, separated into video and audio signals TV-tuner module for audio and video reception Multistandard receiver Multistandard signal processing
TV tuner, function		GF82.60-P-3109-02TA
