Load compartment lamp, location/task/function - GF82.20-P-4200TA

MODEL 211.2

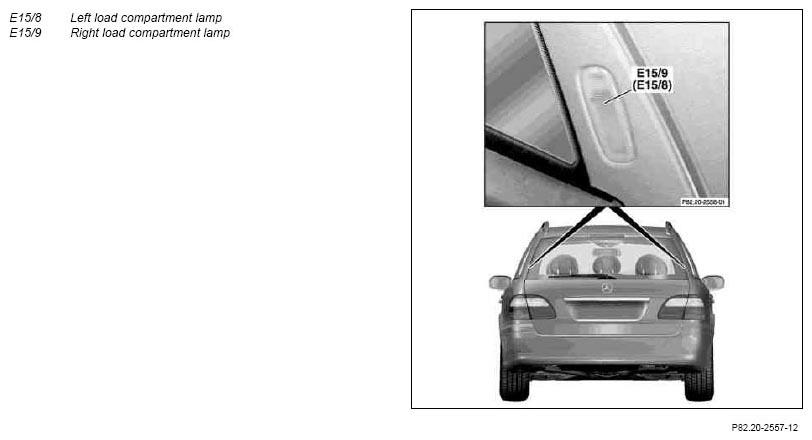

Fig 1: Locating Load Compartment Lamps
G07275070Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Load compartment lamp, location The left load compartment lamp (E15/8) and the right load compartment lamp (E15/9) are fitted in the respective paneling of the D-pillar.
Load compartment lamp, task The left load compartment lamp (E15/8) and the right load compartment lamp (E15/9) have the task of illuminating the load compartment and its surroundings.
Load compartment lamp, function The left load compartment lamp (E15/8) and the right load compartment lamp (E15/9) are switched on by the trunk lid contact switch (S88/6).
