Dynamic cornering lamp motor, location/task - GF82.10-P-2108T
MODEL 211.0/2 with CODE (615a) Bi-xenon headlamp unit with integrated cornering lamps

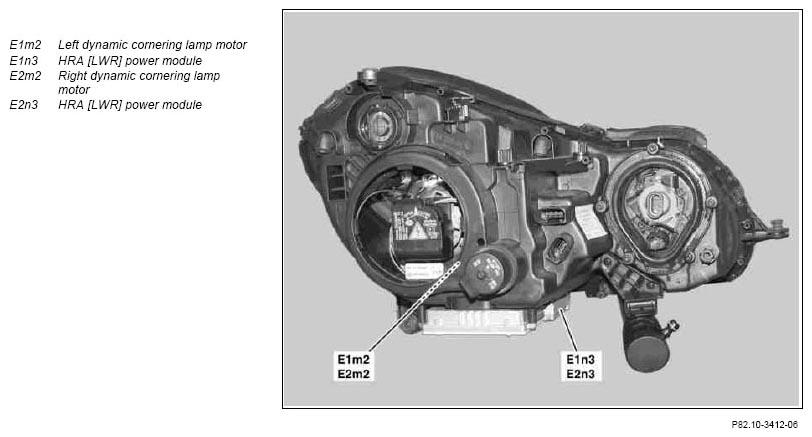

Shown on left front headlamp unit
| Dynamic cornering lamp motor, location | The left dynamic cornering lamp motor (E1m2) and right dynamic cornering lamp motor (E2m2) are located in the left and right lamp unit. |
| Dynamic cornering lamp motor, task | Horizontal swiveling of left and right bi-xenon headlamp unit. |
