Distronic switch block position - GF30.30-P-3105-01T

Shown on models 211, 219

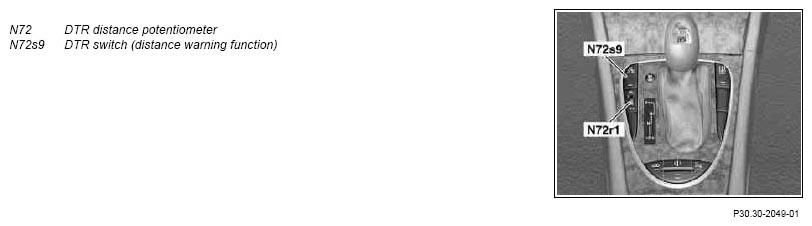

Fig 1: Identifying DTR Distance Potentiometer And DTR Switch (Shown On Models 211, 219)
G07271054Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
