Removing and installing Parktronic system (PTS) warning indicator in instrument panel - AR54.65-P-0003T

MODEL 211.0/2/6 with CODE (220a) Parktronic System (PTS)

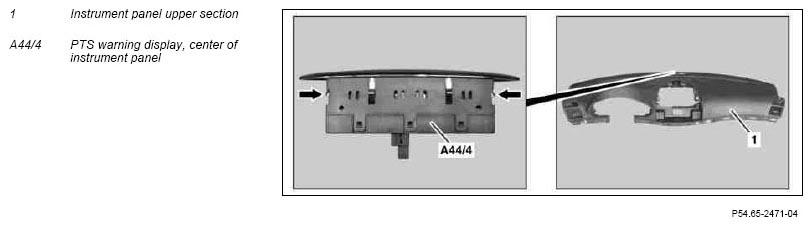

Fig 1: Identifying Instrument Panel Upper Section And PTS Warning Display
G07284366Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Remove instrument panel top section (1)   AR68.10-P-1020T
2 Push back the retaining clamps with a screwdriver (arrows) and unclip center instrument panel PTS warning indicator (A44/4) from instrument panel upper section (1) IMPORTANT Note correct installation positions.
3 Install in the reverse order
