Remove/install contact plate for cell phone holder (UPCI [UHI]) in the armrest - AR82.70-P-8919T

MODEL 211.0/2 as of 2.6.08 with CODE (386) Preinstallation for cell phone, UPCI system

MODEL 211.0/2 with CODE (809) Model year 2009 with CODE (386) Preinstallation for cell phone, UPCI system

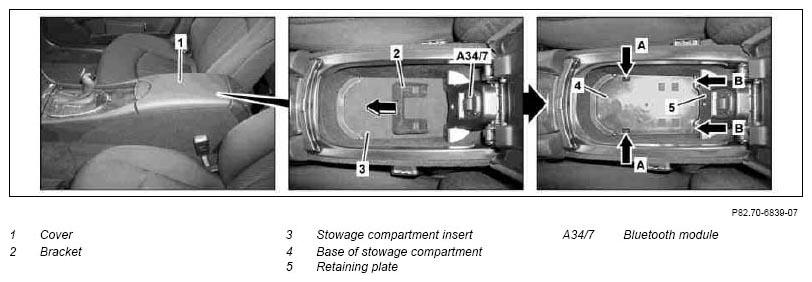

Fig 1: Identifying Base Of Stowage Compartment, Stowage Compartment Insert, Retaining Plate And Bluetooth Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Cell Phone Holder Contact Plate Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open lid (1) of stowage compartment in center console
2	Lift bracket (2) and remove to the front
3	Remove stowage compartment insert (3)	Installation:  Check that stowage compartment insert (3) is correctly seated.
4	Remove stowage compartment floor (4)	Release stowage compartment floor (4) at catch hooks (arrows A), lift at front and then remove to the rear with the tabs (arrows B) from the retaining plate (5).
5	Detach electrical connector (6), cell phone separation point (X39/37) and Bluetooth module connector (X39/57)
6	Remove screw/bolt (7) from retaining plate (5)
7	Release retaining plate (5) from catch hooks (arrows C), tilt forward and pull upwards out of the center console floor (8)	Installation:  Check that tabs (arrows D) are correctly seated in center console floor (8).
8	Unscrew screw/bolt (9) and remove Bluetooth module (A34/7) from retaining plate (5)	When replacing retaining plate (5) or Bluetooth module (A34/7).
9	Detach electrical connector (10) and remove electrical wiring harness (11)	When replacing Bluetooth module (A34/7).
10	Install in the reverse order
