Seam sealing following repair, front end damage - AR97.10-P-4000-01T

1. Seal spot welds and rivets in repaired area with seam sealing material.

   It is necessary to seal accessible spot weld flanges on both sides.

   If accessible from one side, only seal corresponding surface.

   Observe standard seals!

   Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

Area of left engine compartment, shown on model 211.0

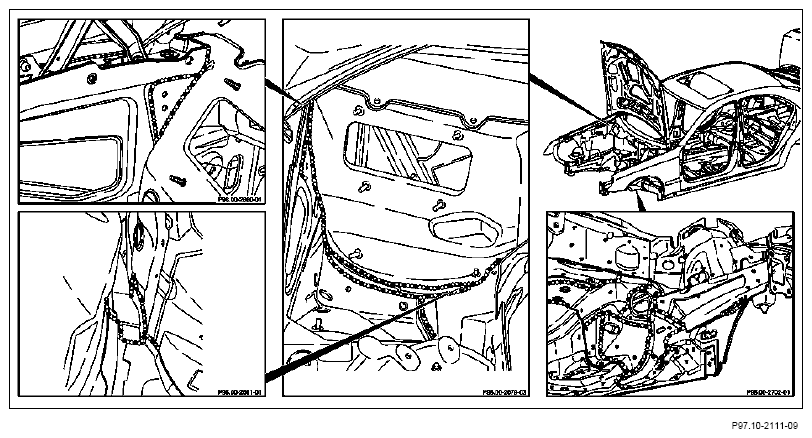

Fig 1: Identifying Sealing Area Of Left Engine Compartment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

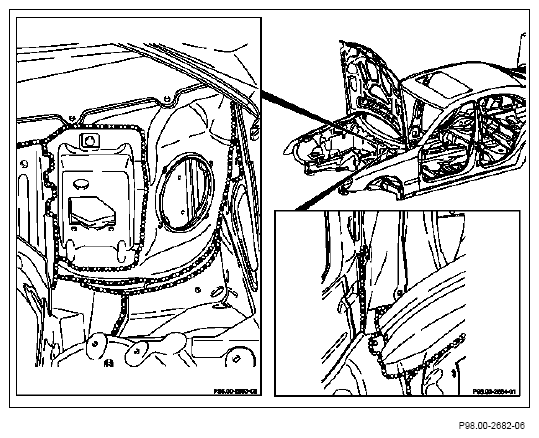

Fig 2: Identifying Sealing Area Of Right Engine Compartment And Front Bottom Longitudinal Member

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

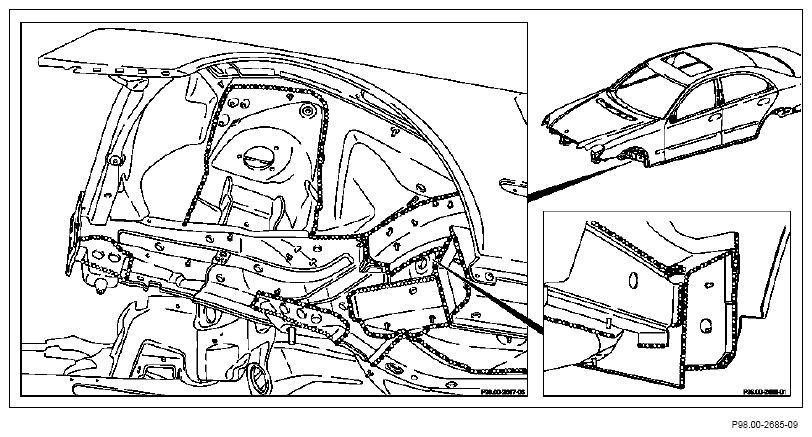

Fig 3: Identifying Sealing Area Of Wheel Well And Front Longitudinal Member

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Area of wheel well and front longitudinal member, shown on model 211.0

Area of front footwell, shown on model 211.0

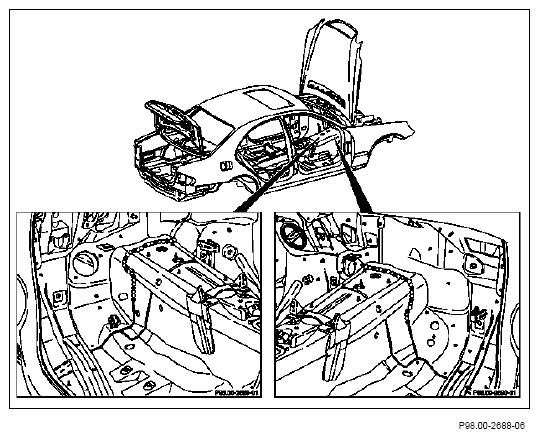

Fig 4: Identifying Sealing Area Of Front Footwell

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
