Prepare new rear fender - AR63.50-P-1400-03T

COMMERCIALLY AVAILABLE TOOLS CHART

Number	Designation
WH58.30-Z-1002-02A	Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT CHART

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS CHART

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

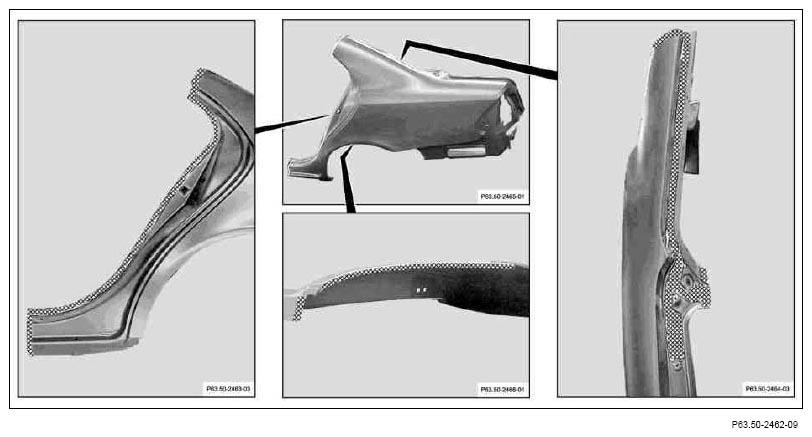

Fig 1: Locating Connection Surfaces Shaded Areas

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Then grind connection surfaces to bare metal in shaded areas. Sand spot welding flanges to bare metal on both sides
2. Coat insides of spot welding flanges with zinc dust paint.

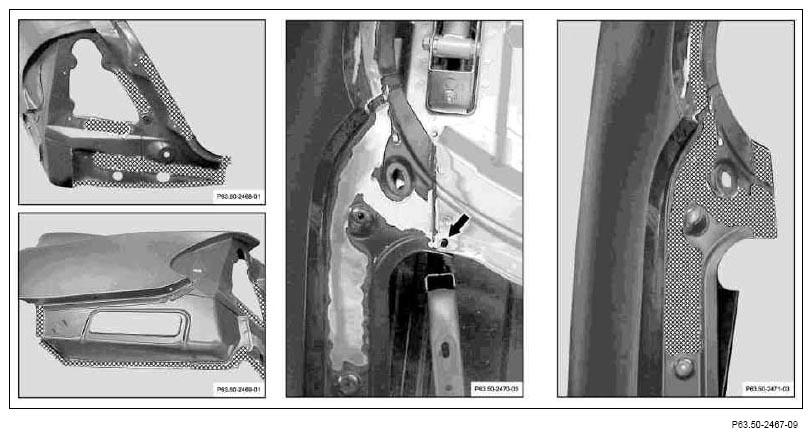

   Fig 2: Transferring Cut Hole From Upper Rear Center Section To Rear Fender

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Fit rear fender.
4. Transfer cut hole from upper rear center section to rear fender (arrow).
5. Remove rear fender.
6. Punch 7 mm dia. hole.
