Separate rear wall - AR64.10-P-5746-01T

Fig 1: Locating Dia. 5 mm Holes (Area E)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Drill dia. 5 mm holes (area E).
   Fig 2: Locating Dia. 5 mm Holes (Areas A, B, C And D)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Drill dia. 5 mm holes (areas A, B, C and D).
3. Heat rear wall (1) in shaded areas
4. Remove rear wall (1)

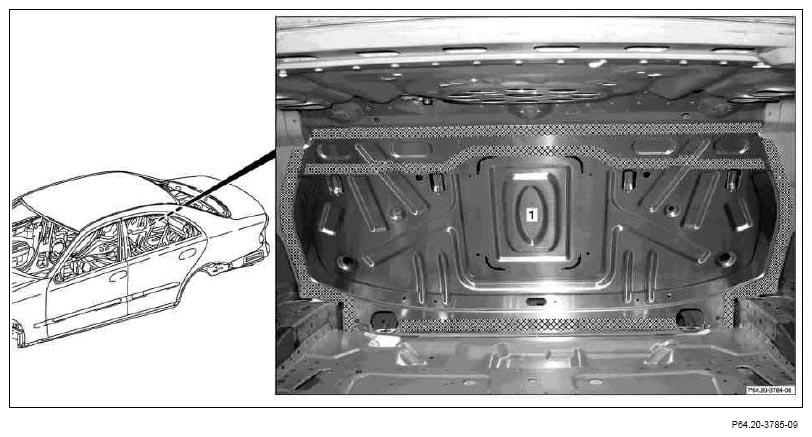

   Fig 3: Locating Rear Wall Shaded Areas

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shaded areas are glued
