Preparing bottom rear center section for installation - AR64.20-P-1000-07T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT CHART

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS CHART

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

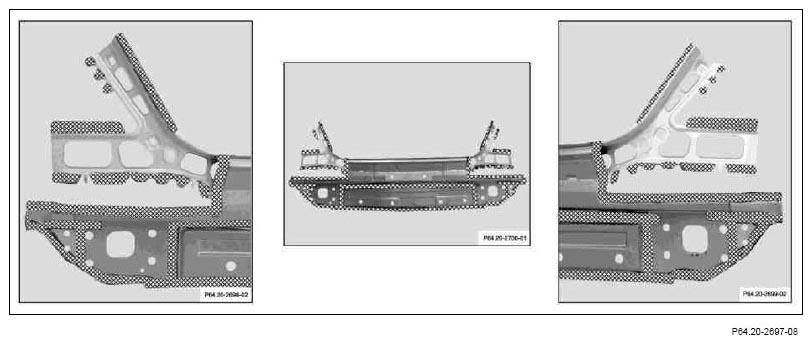

Fig 1: Locating Connection Surfaces Checked Areas

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Grind connection surfaces in checked areas to bare metal. Sand spot weld flanges to bare metal on both sides Coat insides of spot weld flanges with zinc dust paint.

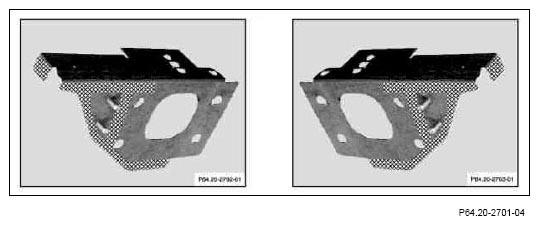

Fig 2: Locating Spot Weld Flanges Sanding & Painting Areas
