Prepare rear wall for installation - AR64.10-P-5746-02T

REPAIR MATERIALS CHART

Number	Designation	Order number
BR00.45-Z-1092-02A	Adhesive kit, body, 2-component adhesive	A 009 989 36 71

Sand connection surfaces down to bare metal in the cross-hatched areas.
Use chrome-nickel wire brush.
Grind connection surfaces in cross-hatched areas with sanding paper.
Use "Saco-Roc" sanding paper.
Clean connection surfaces in cross-hatched areas with brush or lent-free rag.
Coat connection surfaces in cross-hatched areas with primer.
Observe pretreatment of gluing surfaces

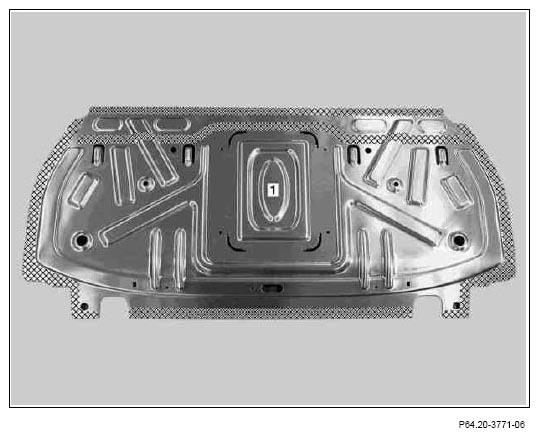

Fig 1: Locating Connection Surfaces Cross-Hatched Areas
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
