Install longitudinal member end element and weld in - AR64.20-P-1200-05T

REPAIR MATERIALS CHART

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Install end section, fit and fasten with clamping pliers.
Drill pilot hole (area AE).
Drill dia. 6.5 mm rivet holes (area X).
Remove locking lug.
Deburr rivet holes on both sides

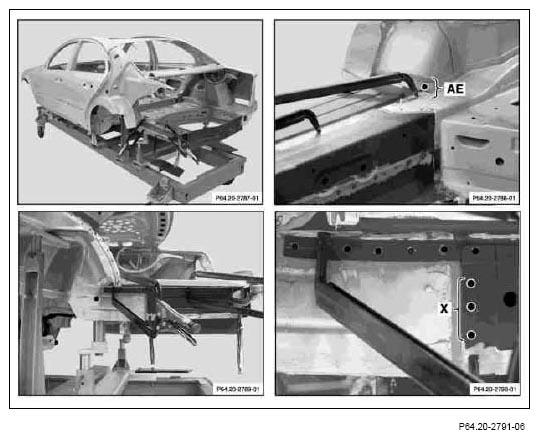

Fig 1: Locating Pilot & Rivet Holes (Area AE & X)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0
Install end section, fit and fasten with screw-on clamping gripper.
Weld in end section with (areas AB, E, N, O and V).
Weld in end section on longitudinal member with areas (AE and W).
Rivet end section with 6.4 x 14 mm dia. Polygrip flat head rivet (area X).

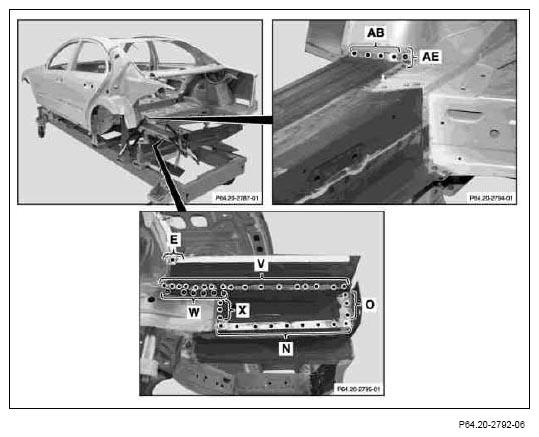

Fig 2: Welding In End Section (Areas AB, AE, E, N, O, V And W)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0
