Install and weld in bottom rear center section - AR64.20-P-1000-08T
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.0 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01F | Gap dimension | Engine hood to fender | Dim. "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dim. "B" | mm | 4 (+1) | ||
| Radiator grille/bumper | Dim. "C" | mm | 5.5 (+1) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1002-01F | Gap dimension | Front door to A-pillar | Dim. "D" | mm | 4.5 (±0.5) |
| Front door to fender | Dim. "E" | mm | 4 (±0.5) | ||
| Front door to rear door | Dim. "F" | mm | 4 (+1) | ||
| Front door to roof | Dim. "G" | mm | 4.5 (±0.5) | ||
| Rear door to top of side section | Dim. "H" | mm | 4.5 (±0.5) | ||
| Rear door to side section, bottom | Dim. "I" | mm | 3.5 (±0.5) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1003-01F | Gap dimension | Trunk lid to rear fender, top | Dim. "J" | mm | 3,5 (+1) |
| Trunk lid to rear lamp unit | Dim. "K" | mm | 3.9 (+1) | ||
| Trunk lid to bumper | Dim. "L" | mm | 6.5 (-0.5/+1) | ||
| Rear fender to rear lamp unit | Dim. "M" | mm | 2.5 (±0.5) | ||
| Trunk lid license plate panel to rear lamp unit | Dim. "N" | mm | 4.3 (+1) | ||
| See picture | AR60.00-P-0700-01T | ||||
| BE60.00-P-1004-01F | Gap dimension | Fuel filler flap | Dim. "O" | mm | 3.5 (±0.5) |
| See picture | AR60.00-P-0700-01T | ||||
REPAIR MATERIALS CHART
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
| BR00.45-Z-1001-13A | Blind rivet 6.4x14 | A 003 990 35 97 |

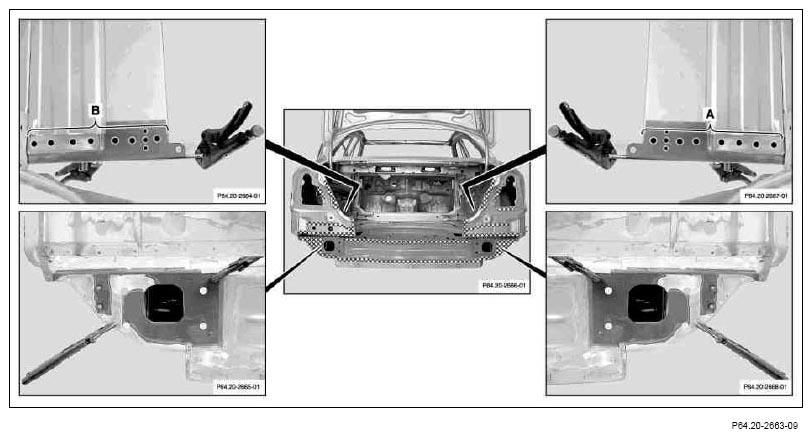

- Install reinforcements on rear outer left and/or right cross member and fit. Drill 6.5 mm dia. rivet holes (areas A and B).
- Remove reinforcements from rear outer left and/or right cross member. Deburr rivet holes on both sides.
- Install reinforcements on rear outer left and/or right cross member and fasten with pop-up rivet with locking thread.
- Rivet reinforcements on rear outer left and/or right cross member and inner longitudinal member with Polygrip flat head rivet, Ø 6.4 x 14 mm (areas A and B).

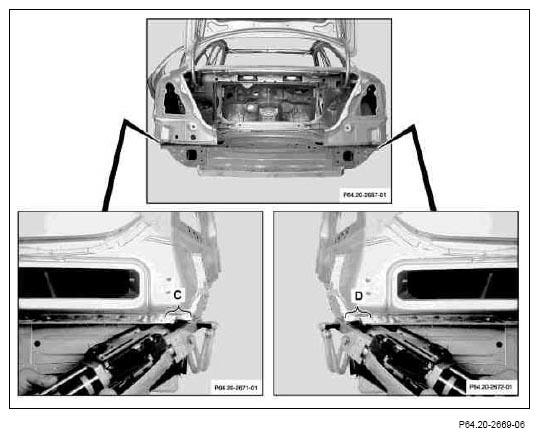

- Reinforcements on rear outer left and/or right cross member
(areas C and D).

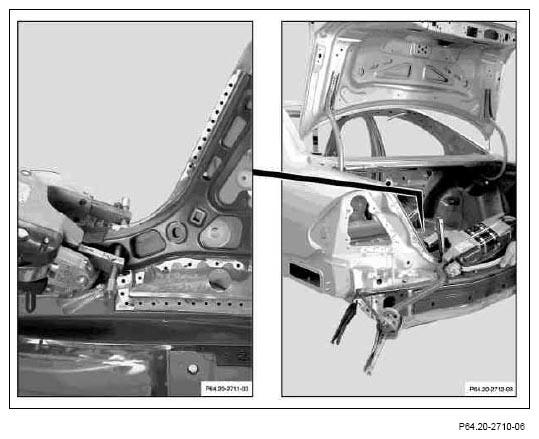

- Install bottom rear center section, rear lamp, rubber seal and striker eye.

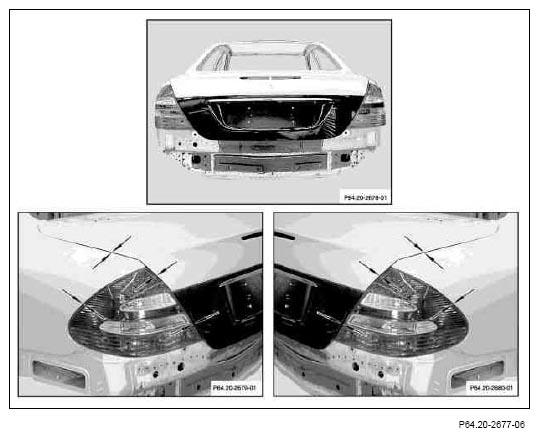

- Check sizes of gaps and adjust:
rear fender/taillamp
trunk lid/upper rear fender
trunk lid covering/taillamp
trunk lid/taillamp
Use feeler gauge!

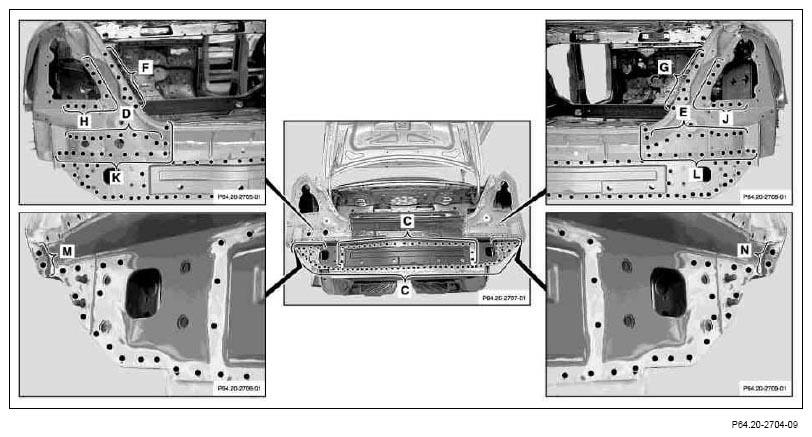

- Bottom rear center section RP (areas C to N).
