Retrofit digital TV tuner - AZ82.60-P-0007T

MODEL 211.0 with CODE (860) TV tuner

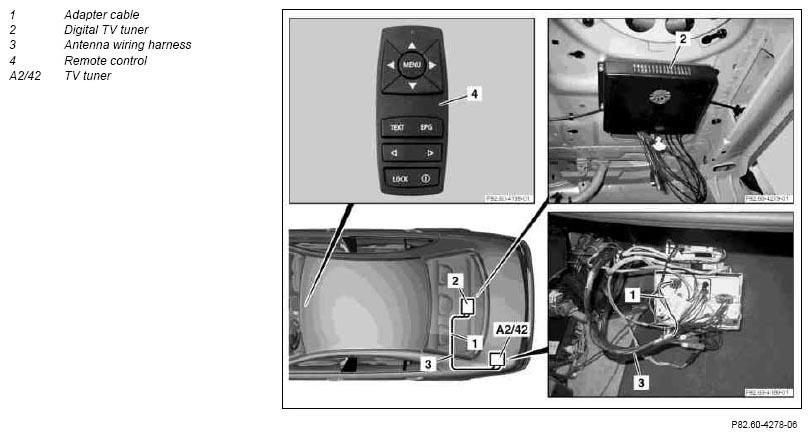

Fig 1: Identifying Digital TV Tuner, Adapter Cable, Remote Control And Antenna Wiring Harness

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Disconnect battery ground cable
			AR54.10-P-0003T
2	Connect no load current retention unit	Quiescent current retention unit CMP 12.2.	*WH58.30-Z-1012-09A
3	Remove left luggage compartment trim
4	Remove TV tuner
	Install
5	Retrofit digital TV tuner control unit		AZ82.60-P-0007-01T
		Riveter.	*WH58.30-Z-1003-29A
6	Retrofit TV tuner wiring harness		AN82.60-P-0001-03T
7	Carry out start-up and function test		AZ82.61-P-0001-04MM
8	Install remaining parts onto vehicle

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit
WH58.30-Z-1003-29A	Hand riveter

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 782 64 41	Digital TV tuner parts kit	1
B6 782 64 54	Antenna housing kit	1
