Remove/install driver kneebag - AR91.60-P-0200TX
Model 219.3 as of 6/1/06 with code 494 (US version)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100°C or 212°F; Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003TX | |
| 3 | Remove bottom section of dashboard on driver's side | AR68.10-P-1505TX | |

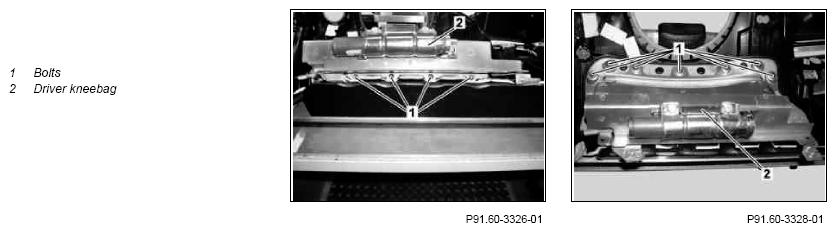

| 4 | Remove bolt (1) | *BA91.60-P-1004-01G | |
| 5 | Remove driver kneebag (2) | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check and erase vehicle fault memory using the diagnostic system | When replacing the driver kneebag (2). | |
| AD00.00-P-2000-04TX |
AIRBAG
| Number | Designation | MODEL 219.3 with CODE 494 | |
|---|---|---|---|
| BA91.60-P-1004-01G | Bolt, kneebag to paneling | Nm | 3 |
