Media interface control unit, component description - GF82.60-P-5000LE

MODEL 216 with CODE (518) Media interface as of model year 2010 /YoM 09

MODEL 221 with CODE (518) Media interface as of model year 2010 /YoM 09 model refinement package

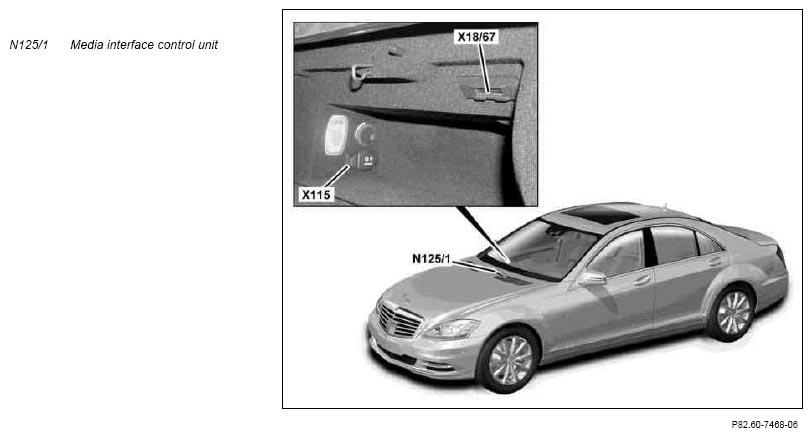

Shown on model 221

Task

The media interface control unit serves as universal unit connecting point to connect portable devices to the audio system. In this context, the media interface control unit has the following tasks:

• Reading in of signals
• Transmitting signals

Reading in of signals

Signals are read in via the following connections:

• Direct lines
• Media Oriented System Transport (MOST)

Direct lines

The following signals are read in via direct lines:

• Audio signals and data over media interface connector (X18/70)
• Electronic wake-up for MOST

MOST

The following signals are read in via MOST:

• Control and operating signals from COMMAND control unit (A40/3)

Transmitting signals

The signals are transmitted via the following connections:

• Direct line
• MOST

Direct line

The media interface control unit transmits the control and operating signals via the media interface connector to the connected portable devices.

MOST

The media interface control unit transmits the control and operating signals to the COMMAND control unit via MOST.
