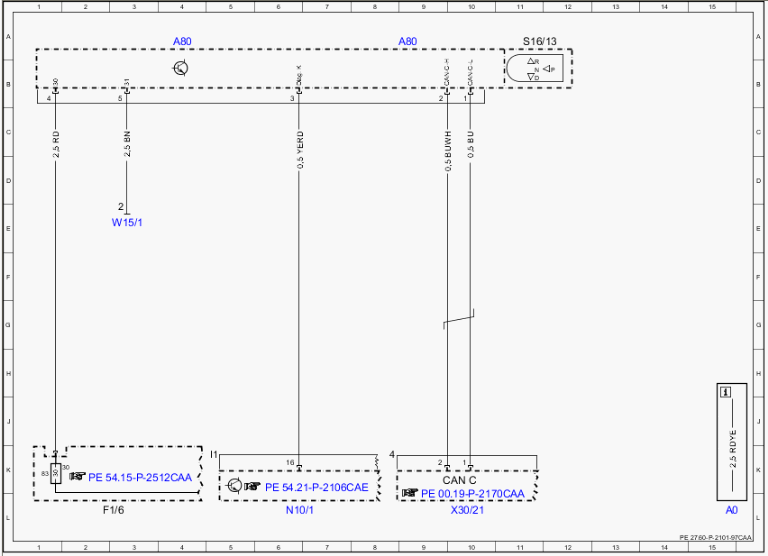

Wiring diagram for intelligent servo module (ISM) control unit - PE27.60-P-2101-97CAA
TRANSMISSION 722.6 in MODEL 216.3 with ENGINE 275.953 /982 control unit A80 TRANSMISSION 722.9 in MODEL 216.3 with ENGINE 156.984, 157, 273, 278 control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 9A |
| CAN C | Drive train CAN | 10K |
| F1/6 | Right instrument panel fuse box | 2L |
| F1/6f83 | Fuse 83 | 1K |
| N10/1 | Front SAM control unit with fuse and relay module | 6L |
| N3/10 | ME-SFI [ME] control unit | 15D |
| S16/13 | Gear selector switch DIRECT SELECT | 11A |
| W15/1 | Ground (right footwell) | 2E |
| X30/21 | Selection range sensor (VGS) | 5K |
| Y3/8s2 | Drive train CAN voltage distributor connector | 10L |
