AIRmatic with ADS control unit, component description - GF32.22-P-5108LE
MODEL 221.0 /1
except CODE (487) Active Body Control (ABC)
as of Model Year 2009
up to Model Year 2010
/modification year 08,
/modification year 09 model refinement package
MODEL 221.1
with CODE (Z07) Top protection
except CODE (487) Active Body Control (ABC)
as of Model Year 2009
/modification year 08
MODEL 216.3
with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
as of Model Year 2009
up to Model Year 2010
/modification year 08,
/modification year 09

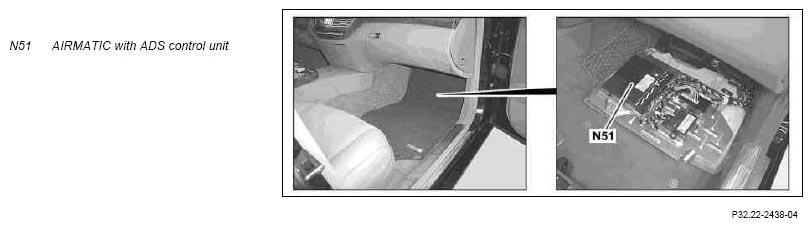

Shown on model 221.0
Location
The AIRMATIC with ADS control unit is located on the control unit retaining plate in the front passenger footwell.
Task
The tasks of the AIRMATIC with ADS control unit are as follows:
- Reading in of sensors, pickups and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors, pickups and signals
The input factors are read in with the following connections:
- Direct line
- Chassis CAN (CAN E)
Direct line
The following components are read in via a direct line:
- Rear axle level sensor (B22/3)
- Left front level sensor (B22/8)
- Right front level sensor (B22/9)
- Left front body acceleration sensor (B24/3)
Right front body acceleration sensor (B24/4)
Right rear body acceleration sensor (B24/6)
AIRmatic pressure sensor (Y36/6b1)
Chassis CAN
The signals are read in by the AIRMATIC with ADS control unit via the chassis CAN.
The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors are evaluated by the microprocessor and the corresponding components are actuated.
Actuation of components
Components are actuated with the following connection:
- Direct line
Direct line
The following components are actuated via a direct line:
- Air suspension compressor relay (N10/1kB) for actuating the AIRMATIC compressor unit (A9/1) with integrated AIRmatic pressure reduction valve (A9/1y1)
Level control valve unit (Y36/6) with following components:
- Left front level control valve (Y36/6y1)
- Right front level control valve (Y36/6y2)
- Left rear level control valve (Y36/6y3)
- Right rear level valve (Y36/6y4)
- AIRMATIC central reservoir charge valve (Y36/6y5)
- Left front axle damping valve unit (Y51) with following components:
- Solenoid valve 1, left front (Y51y1)
- Solenoid valve 2, left front (Y51y2)
- Right front axle damping valve unit (Y52) with following components:
- Solenoid valve 1, front right (Y52y1)
- Solenoid valve 2, front right (Y52y2)
- Left rear axle damping valve unit (Y53) with following components:
- Solenoid valve 1, rear left (Y53y1)
- Solenoid valve 2, rear left (Y53y2)
- Right rear axle damping valve unit (Y54) with following components:
- Solenoid valve 1, rear right (Y54y1)
- Solenoid valve 2, rear right (Y54y2)
Wiring diagram of AIRmatic control unit Model 221 PE32.22-P-2101-99SAA Model 216 PE32.22-P-2101-99CAA
