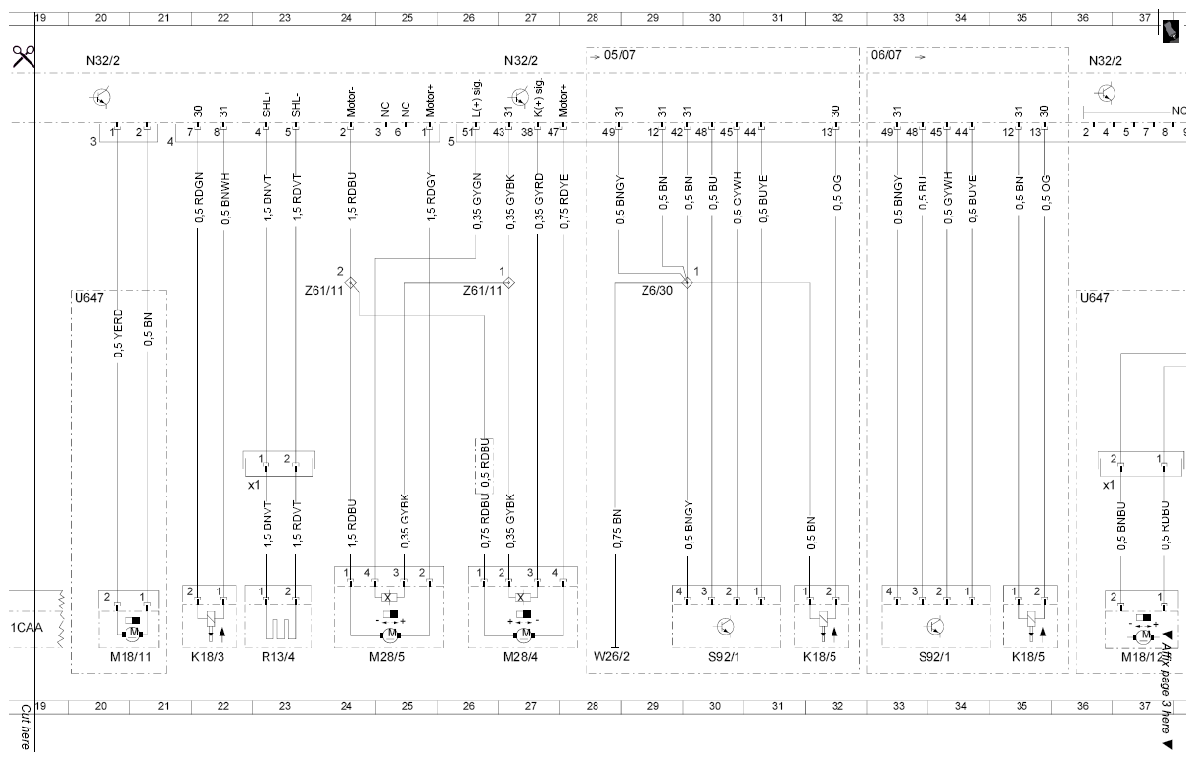

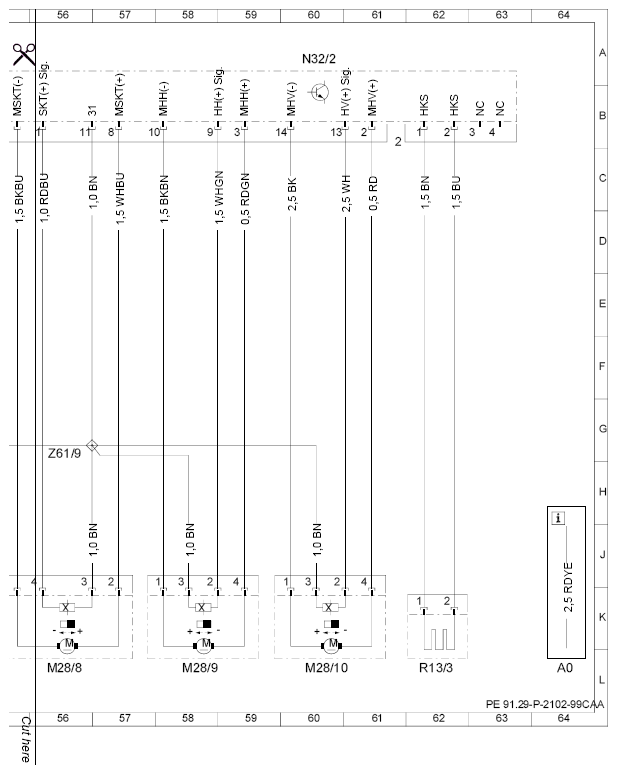

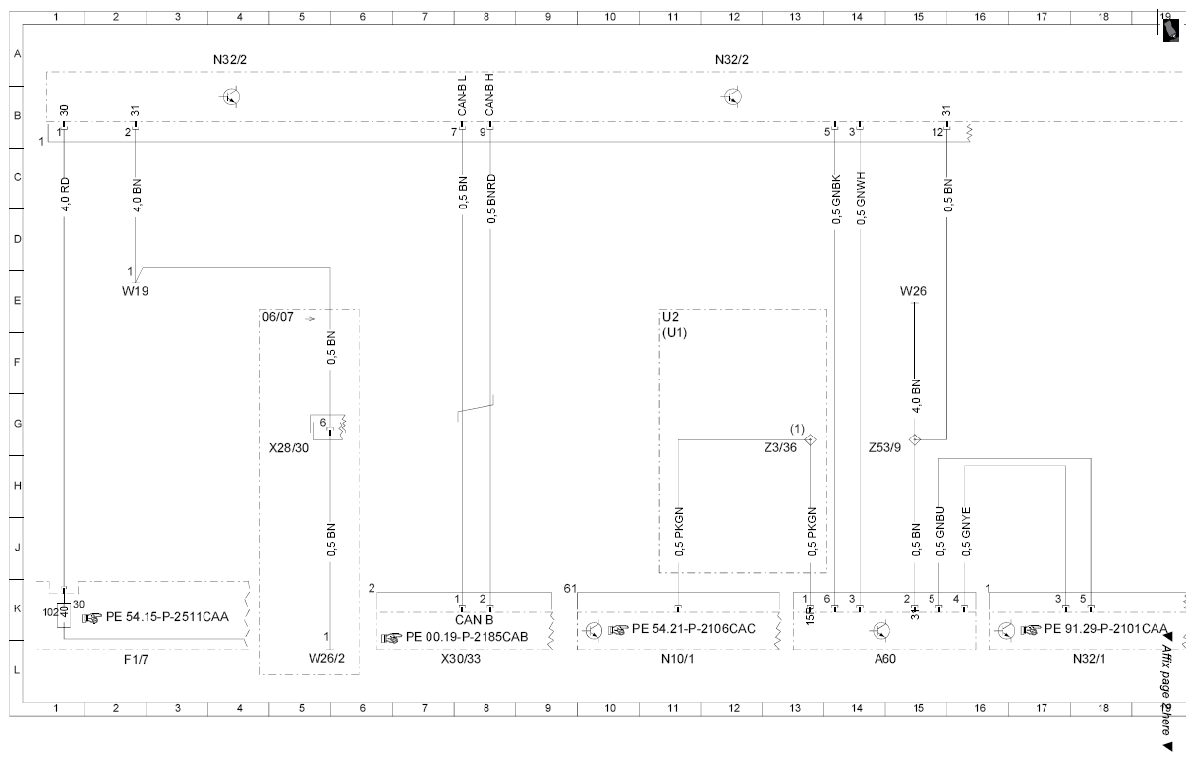

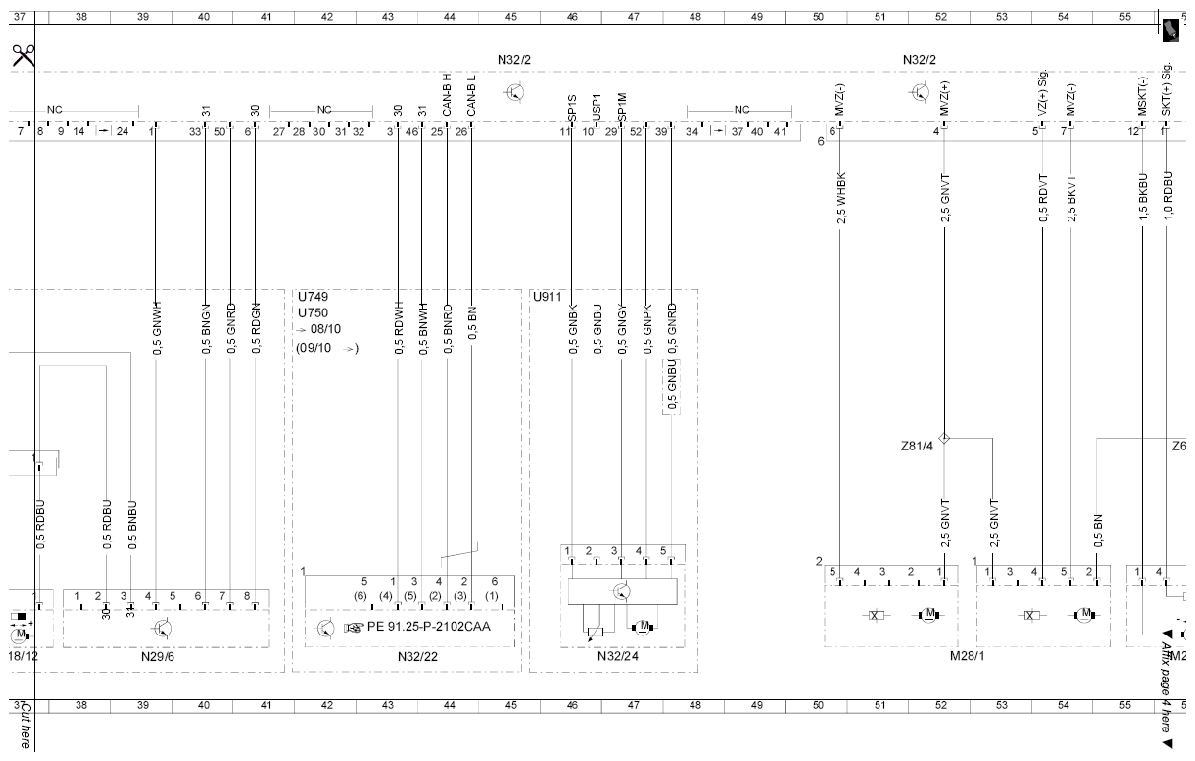

Wiring diagram of right front seat control unit - PE91.29-P-2102-99CAA
MODEL 216.3 Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 64 L |
| A60 | Vehicle-sensitive seatbelt lock sensor | 14 L |
| F1/7 | Left instrument panel fuse box | 2 L |
| F1/7f102 | Fuse 102 | 1 K |
| K18/3 | Right front seat belt lock relay module | 21 L |
| K18/5 | Right front seat belt comfort solenoid | 31 L |
| K18/5 | Right front seat belt comfort solenoid | 35 L |
| M18/11 | Right front seat cushion ventilation motor group | 20 L |
| M18/12 | Right front seat backrest ventilation motor group | 37 L |
| M18/12x1 | Right front seat backrest ventilation motor group connector | 36 H |
| M28/1 | Right front seat fore/aft adjustment motor | 52 L |
| M28/10 | Right front seat height adjustment motor | 60 L |
| M28/4 | Right front head restraint motor | 27 L |
| M28/5 | Right front backrest angle adjustment motor | 24 L |
| M28/8 | Right front seat cushion fore/aft motor | 56 L |
| M28/9 | Right front seat cushion inclination motor | 58 L |
| N10/1 | Front SAM control module with fuse and relay module | 11 L |
| N29/6 | Right front seat ventilation blower regulator | 39 L |
| N32/1 | Left front seat control module | 17 L |
| N32/2 | Right front seat control module | 4 A |
| N32/2 | Right front seat control module | 12 A |
| N32/2 | Right front seat control module | 20 A |
| N32/2 | Right front seat control module | 27 A |
| N32/2 | Right front seat control module | 36 A |
| N32/2 | Right front seat control module | 44 A |
| N32/2 | Right front seat control module | 51 A |
| N32/2 | Right front seat control module | 60 A |
| N32/22 | Right front dynamic seat control module | 43 L |
| N32/24 | Front passenger lumbar support regulator control unit | 46 L |
| R13/3 | Right front seat heated cushion | 62 L |
| R13/4 | Right front backrest heated cushion | 22 L |
| R13/4x1 | Right front backrest heater element connector | 22 H |
| S92/1 | Right front seat backrest angle microswitch | 30 L |
| S92/1 | Right front seat backrest angle microswitch | 33 L |
| U647 | Valid for seat ventilation | 36 E |
| U749 | Valid for multicontour seat (MCS [MKS]) | 41 E |
| U750 | Valid for dynamic seat (DS [FDS]) | 41 E |
| U911 | Valid for lumbar support | 45 E |
| W19 | Ground (right front seat crossmember) | 2 E |
| W26 | Ground (restraint systems control module) | 15 E |
| W26/2 | Ground (seat, right front sidebag) | 5 L |
| W26/2 | Ground (seat, right front sidebag) | 28 L |
| X28/30 | Passenger-side FFS [RBA]/seat airbag separation point | 4 H |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 7 L |
| Z3/36 | ACSR [AKSE] circuit 15R connector sleeve | 12 H |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | 14 H |
| Z6/30 | Circuit 31 connector sleeve | 29 E |
| Z61/11 | Front passenger seat backrest/head restraint motor connector sleeve | 23 E |
| Z61/11 | Front passenger seat backrest/head restraint motor connector sleeve | 26 E |
| Z61/9 | Wiring harness connector sleeve for seat, terminal 31K | 56 H |
| Z81/4 | Circuit 58d in FSS [RBA] connector sleeve | 51 H |
