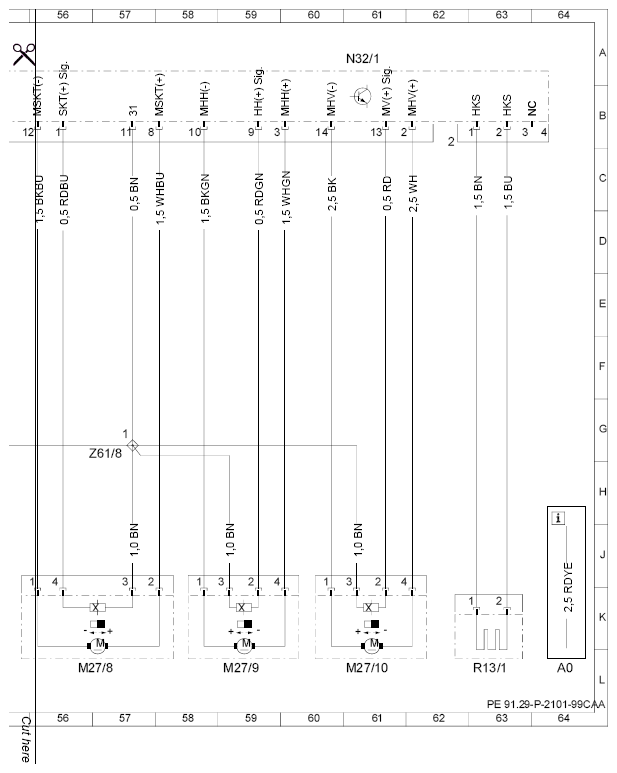

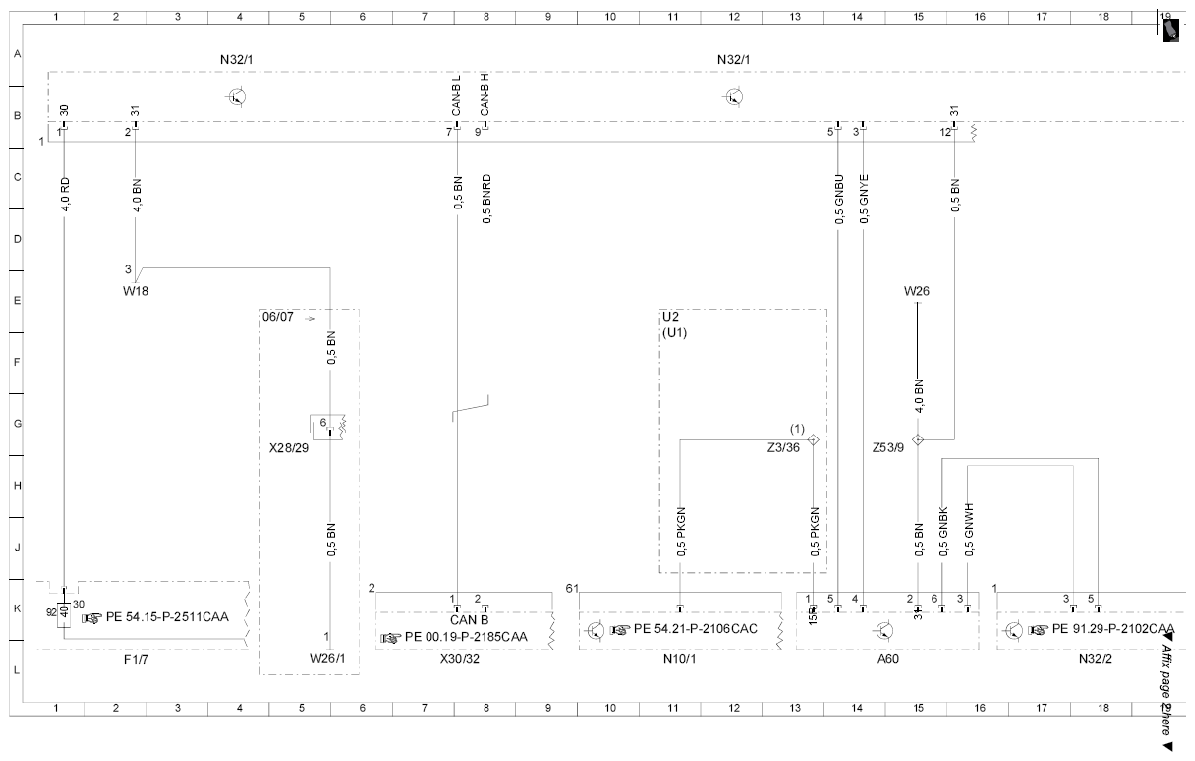

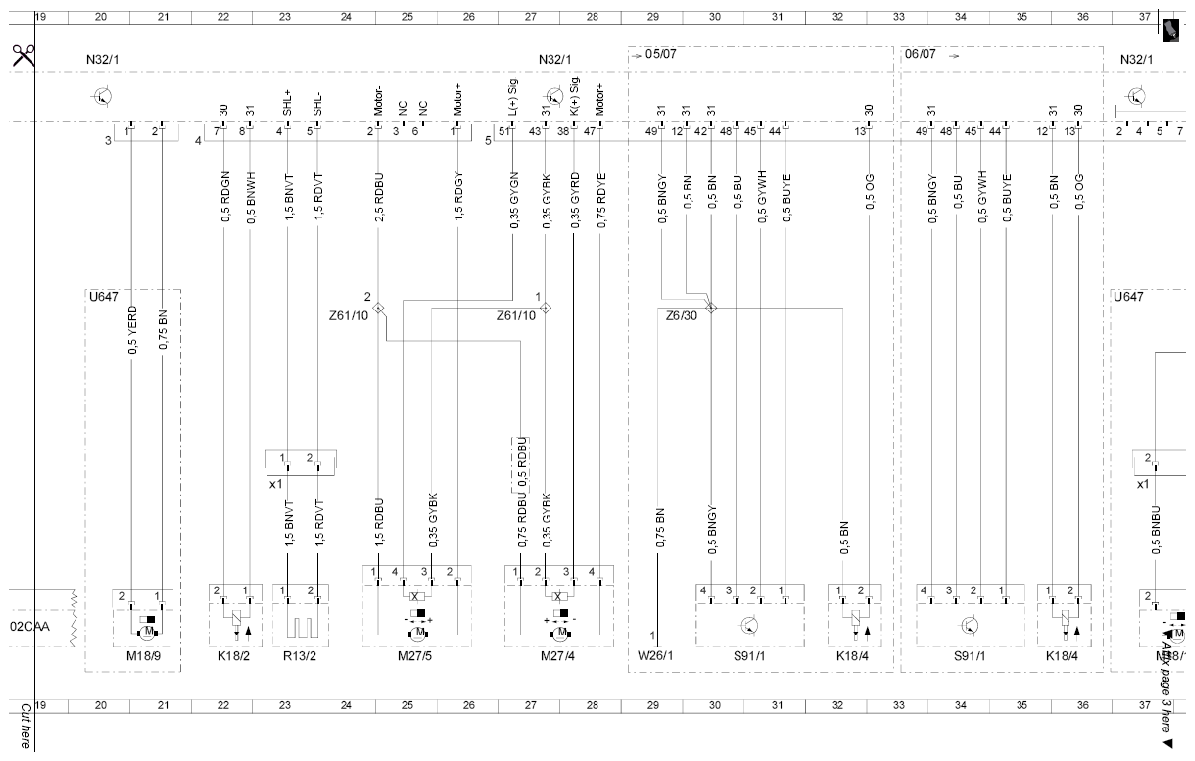

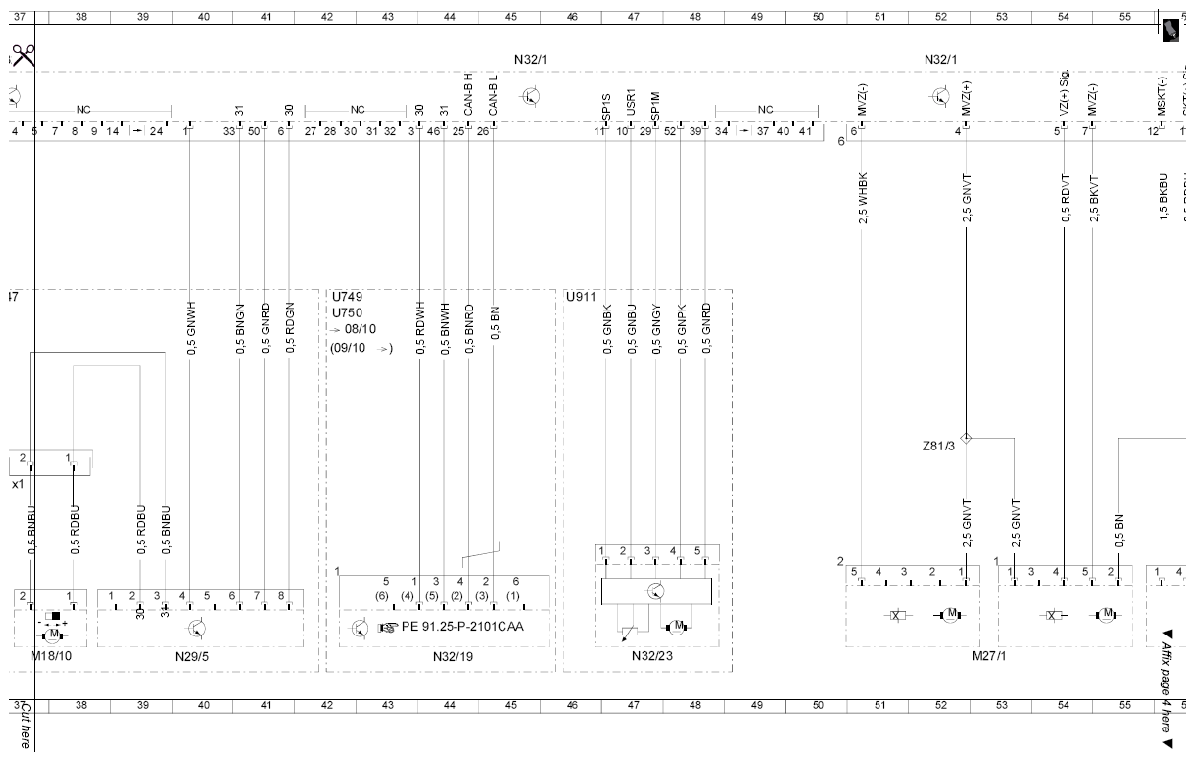

Wiring diagram left front seat control unit - PE91.29-P-2101-99CAA
MODEL 216.3 Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 64 L |
| A60 | Vehicle-sensitive seatbelt lock sensor | 14 L |
| F1/7 | Left instrument panel fuse box | 2 L |
| F1/7f92 | Fuse 92 | 1 K |
| K18/2 | Left front seat belt lock relay module | 22 L |
| K18/4 | Left front seat belt comfort solenoid | 32 L |
| K18/4 | Left front seat belt comfort solenoid | 35 L |
| M18/10 | Left front seat backrest ventilation motor group | 37 L |
| M18/10x1 | Left front seat backrest ventilation motor group connector | 36 H |
| M18/9 | Left front seat cushion ventilation motor group | 20 L |
| M27/1 | Left front seat fore/aft adjustment motor | 52 L |
| M27/10 | Left front seat height adjustment motor | 60 L |
| M27/4 | Left front head restraint motor | 27 L |
| M27/5 | Left front backrest angle adjustment motor | 25 L |
| M27/8 | Left front seat cushion fore/aft motor | 56 L |
| M27/9 | Left front seat cushion inclination motor | 59 L |
| N10/1 | Front SAM control module with fuse and relay module | 11 L |
| N29/5 | Left front seat ventilation blower regulator | 40 L |
| N32/1 | Left front seat control module | 4 A |
| N32/1 | Left front seat control module | 12 A |
| N32/1 | Left front seat control module | 20 A |
| N32/1 | Left front seat control module | 27 A |
| N32/1 | Left front seat control module | 37 A |
| N32/1 | Left front seat control module | 43 A |
| N32/1 | Left front seat control module | 52 A |
| N32/1 | Left front seat control module | 60 A |
| N32/19 | Left front dynamic seat control module | 43 L |
| N32/2 | Right front seat control module | 18 L |
| N32/23 | Driver lumbar support regulator control unit | 47 L |
| R13/1 | Left front seat heated cushion | 62 L |
| R13/2 | Left front backrest heated cushion | 23 L |
| R13/2x1 | Left front backrest heated cushion connector | 22 H |
| S91/1 | Left front seat backrest angle microswitch | 30 L |
| S91/1 | Left front seat backrest angle microswitch | 34 L |
| U647 | Valid for seat ventilation | 36 E |
| U749 | Valid for multicontour seat (MCS [MKS]) | 42 E |
| U750 | Valid for dynamic seat (DS [FDS]) | 42 E |
| U911 | Valid for lumbar support | 46 E |
| W18 | Ground (left front seat crossmember) | 2 E |
| W26 | Ground (restraint systems control module) | 15 E |
| W26/1 | Ground (seat, left front sidebag) | 5 L |
| W26/1 | Ground (seat, left front sidebag) | 29 L |
| X28/29 | Driver-side FFS [RBA]/seat airbag separation point | 4 H |
| X30/32 | Left interior CAN/FFS [RBA] voltage distributor connector | 7 L |
| Z3/36 | ACSR [AKSE] circuit 15R connector sleeve | 13 H |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | 14 H |
| Z6/30 | Circuit 31 connector sleeve | 29 E |
| Z61/10 | Driver seat backrest/head restraint motor connector sleeve | 24 E |
| Z61/10 | Driver seat backrest/head restraint motor connector sleeve | 26 E |
| Z61/8 | Wiring harness connector sleeve for seat, terminal 31 | 56 H |
| Z81/3 | Circuit 58d in FSS [RBA] connector sleeve | 52 H |
